eFUEL 540W/30A V2 Regulated Power Supply NEW!

(No reviews yet) Write a Review
SKU:
SK-200013-10
UPC:
6930460000965
Shipping:
Calculated at Checkout
  • eFUEL 540W/30A V2 Regulated Power Supply NEW!
  • eFUEL 540W/30A V2 Regulated Power Supply NEW!
  • eFUEL 540W/30A V2 Regulated Power Supply NEW!
  • eFUEL 540W/30A V2 Regulated Power Supply NEW!
US$129.99
Frequently bought together:

Description

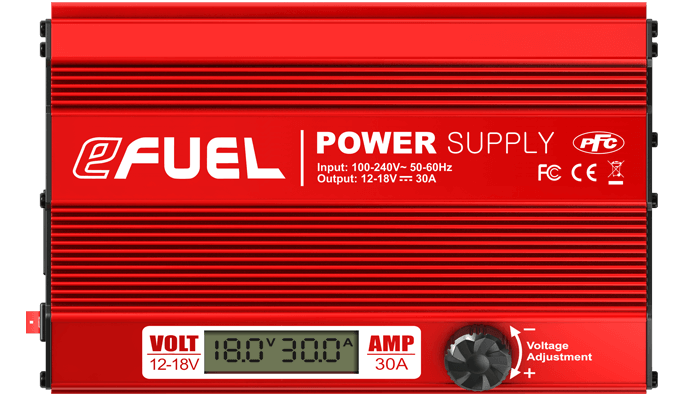

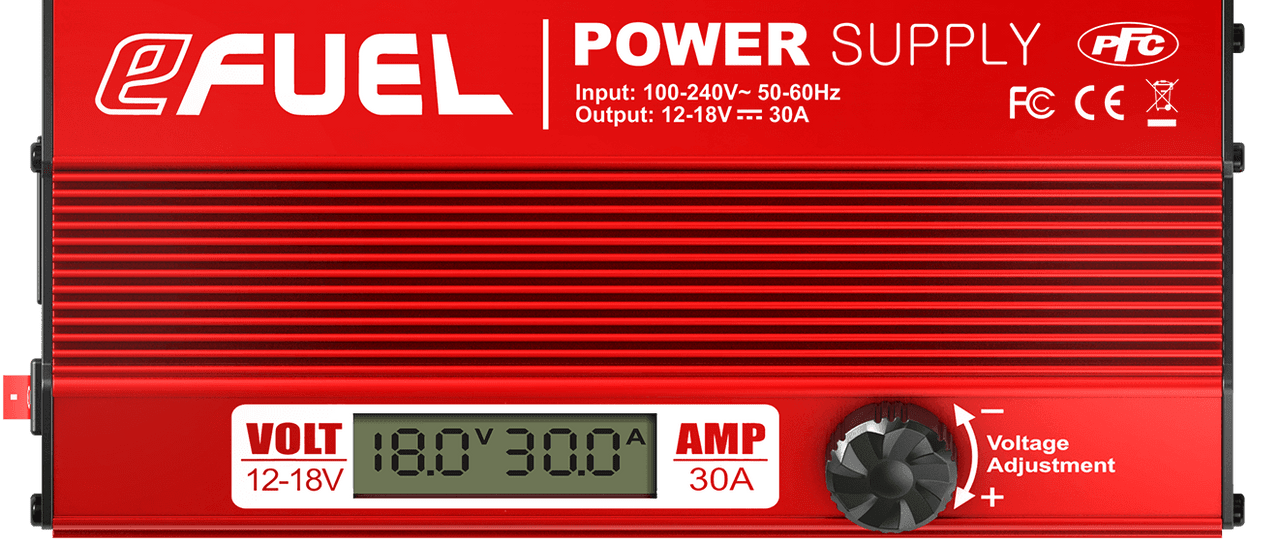

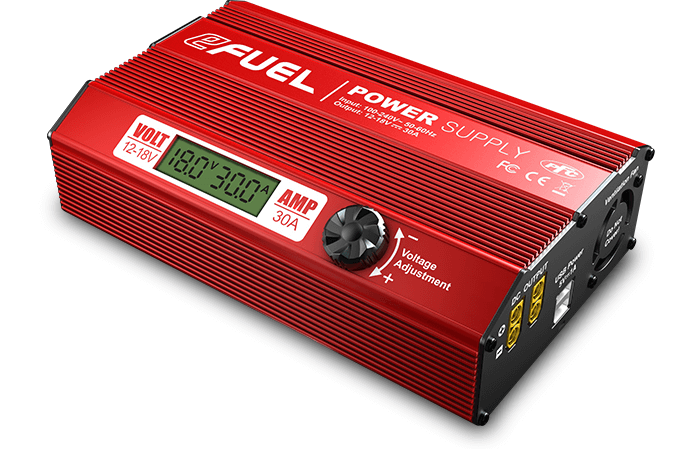

eFUEL 540W/30A Regulated Power Supply

SkyRC eFUEL 540W/30A DC power supply is designed to power your DC power equipments. It’s capable of converting standard household 100-240V AC to 12-18V DC. Continuous current can be up to 30 amperes.

Active PFC

PFC( power factor correction)consists of active PFC and negative PFC. Active PFC, which is integrated into SkyRC 1200W/30A regulated power supply, can provide higher power utilization.

Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It’s capable of correction on AC input voltage and universal on a global basis.

Dual DC Power Outputs

It supports powering two DC equipments simultaneously.

Ouput Voltage Adjustable

Output voltage is selectable from 12V to 18V

What’s in the Box

  • PSU 30A
  • AC Power Cord
  • Instruction Manual

Specifications

Input AC Frequency 50-60Hz
LCD Display Voltage Precision ±0.3V
Current Precision ±0.5A
Cooling Method Cooling Fan
Power Factor >0.98
Operating Temperature 0-40℃ ±0.5V
Power Efficiency 89%
Input Fuse 10A Fuse
Voltage 100-240V AC
Output Voltage 12-18V DC±0.5V
Output Voltage Ripple over 900mV
Over Temperature Protection over 65℃
Weight 1.62kg
Size 218x139x59.5
