The K1 from ISDT runs on both AC and DC input and has two separate channels to charge from. This a versatile charger that will fulfill your FPV charging needs!
- Input voltage: AC 100~240V / DC 10~30V
- Output voltage: DC 1~26.4V
- Max. input current: 20A
- Charging current: 0.1~10A x2
- Balance current: 0.5A/Cell Max
- Max. charging power: AC 100W / DC 250W x2
- Abnormal voltage alarm: Support
- Incorrect cell count setting alarm: Support
- Supported battery types and cell count: LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-10S, NiMH/Cd 1-16S
- Working temperature: 0~40℃
- Storage temperature: -20℃~60℃
- Dimension: 135x115x49mm
- Weight: About 485g
- 1x ISDT K1 100/250W 10A 1-6S AC/DC Dual Channel Smart Charger
AC/DC dual mode
AC/DC dual input meet different use requirements.
Output: AC 100W / DC 250W x2

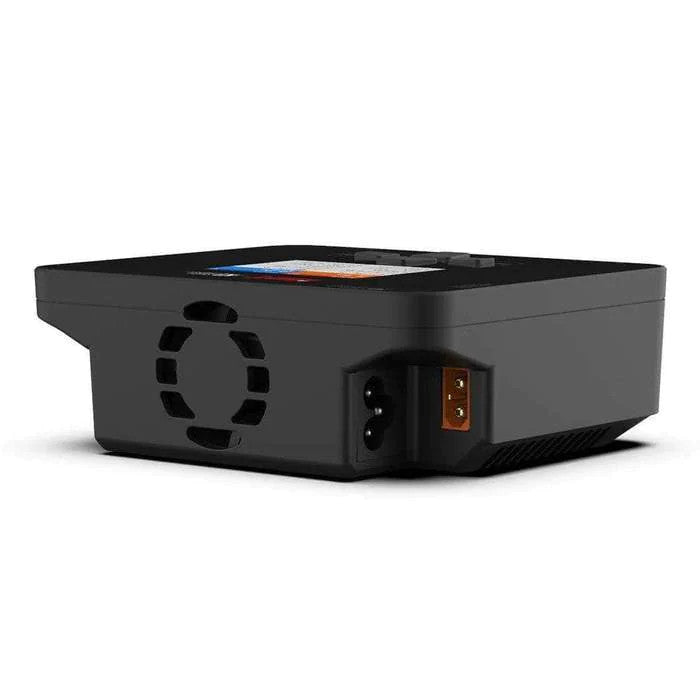

Fool-proof input interface. Smart design
The DC input port and AC input port are mutually exclusive.
Only one input can be selected in one time,
Ensure the safety operation.

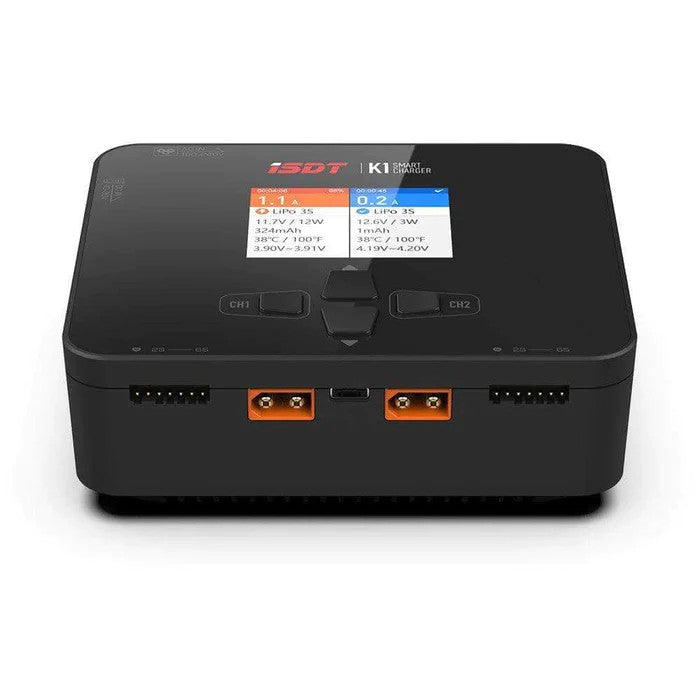

High Power Synchronous Dual Channel, with Smart Charging.
Smart High Speed Processor delivers parameter interfere to each port.
Hassle Free with Maximum charging power up to 250W for single port.
Choose ISDT, Powered by Innovation.
By connecting the charger USB-C port to the PC,
K1 can acquire latest firmware upgrading,
ensure the charger have optimalized performance and latest firmware all the time.
Upgraded scOS 2.0, not only optimizing the system
with a new dimension level,
also further improved the system stability.
New features including DC Power mode,
dark mode, battery scrap and more.
Streamline support with BattGo and SmartPower,
for further interconnection to ISDT ecosystem
product information exchange.
Adjustable Digital Power Supply.
In adjustable digital power supply mode,
the Max. power is AC 100W / DC 120W.
Introducing the dark mode.
scOS 2.0 new dark mode feature,
Suitable for low light scenario,
System will adjust the interface in dark tone,
Reduce light damage to user’s eyes.
While remaining the iconic and
comfortable charging display style.
Battery destroy mode.
scOS 2.0 adds battery destroy mode.
The battery that needs to be discarded,
Put the voltage to 0V in a safe discharge.
Signature original creative interactive systems
Serve 152 countries and regions,
Support on line upgrading for more languages, and better interactive system for global market.
|Input voltage:||AC 100~240V / DC 10~30V|
|Output voltage:||DC 1~26.4V|
|Max. input current:||DC 20A|
|Charging current:||0.1~10.0A x2|
|Balance current:||0.5A/Cell Max|
|Max. charging power:||AC 100W / DC 250W x2|
|Abnormal voltage alarm:||Support|
|Incorrect cell count setting alarm:||Support|
|Supported battery types and cell count:||LiFe, Lilon, LiPo, LiHv 1-6S, Pb 1-12S; NiMH/Cd 1-16S|
