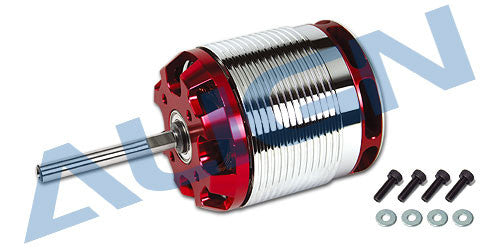

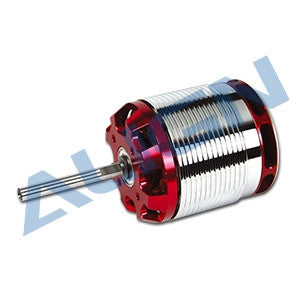

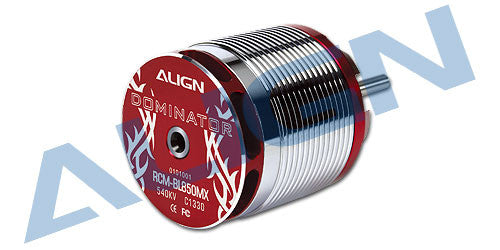

Align 850MX Brushless Motor (540KV)

Align 850MX Brushless Motor (540KV)

Regular price $237.00 USD
Regular price Sale price $237.00 USD
0% OFF Sold out
Shipping calculated at checkout.
View full details
Instructions: Specification:
?To meet the power and torque requirements of enthusiasts, the high output 850MX motor was born in Align’s R&D lab. With dramatic increase in torque and power output, capable of 5330 watts continuous power output and 110000 watts of burst power!
? Inherit from the previous 800MXs feature, high efficiency, superior power, excellent torque, low current draw and low temperature. It’s capable of maintaining much more consistent torque and head speed through continuous 3D maneuvers, which is particularly special design for 3D flights.
?850MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
?The 850MX motor armature are dynamically balanced to eliminate typical imbalance found in other outrunner motors.
?Maintenance free?high torque?high efficiency?stable, and low noise.
?High-speed ball bearings, powerful magnetic outrunner rotor.
?Suitable for T-REX 700E series helicopters and other 700 level models.

?Input Voltage:12S
?Max Continuous Current: 120A/250A(2sec)
?Max Output Power:5330W/11000W(2sec)
?KV Value: 540KV
?Stator Arms: 12
?Magnet Poles: 10

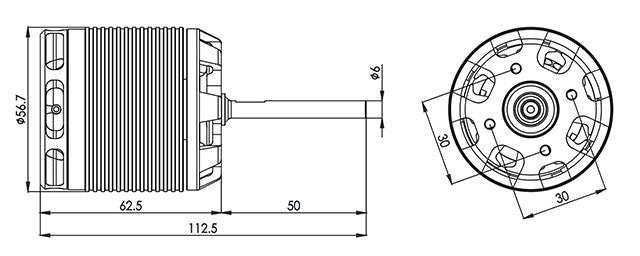

?Dimension: Spindle 6x56.7x112.5mm
?Weight: 570g
?Socket screw(M4x10)X4
?4mm gilt terminal x 3
