Hobbywing

SKU:Platinum-60A-V4

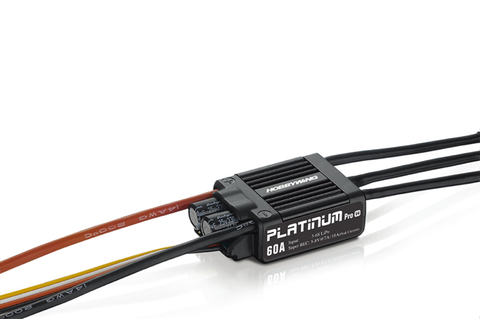

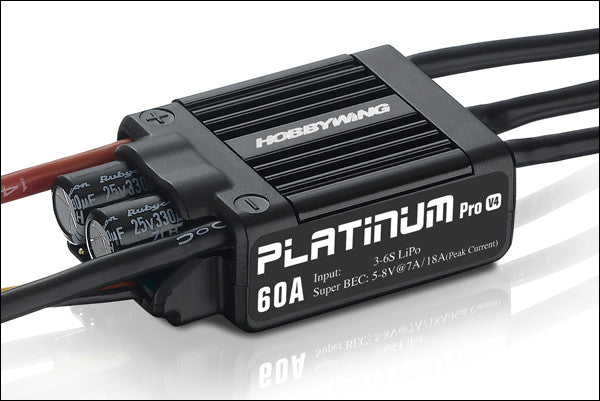

HobbyWing Platinum PRO 60A ESC - V4

HobbyWing Platinum PRO 60A ESC - V4

Regular price $84.99 CAD
Regular price Sale price $84.99 CAD
0% OFF Sold out
Shipping calculated at checkout.
View full details

Features

  • 3-6S LiPo
  • Built-in BEC 5V-8V (default 5V)
  • Require LCD program box (purchase separately)

Specification

Model

Platinum 60A ESC V4

Application

450-480 Class Heli (Propeller: 325-360mm)

Input Voltage

3-6S LiPo

Cont./Peak Current (10s)

60A/80A

(Switch-mode) BEC

5V-8V Adjustable (Step: 0.1V), 7A/18A Cont./Peak

Separate Programming Port

For connecting LCD Program Box/WIFI Express

Throttle Signal/BEC Output/RPM Signal Transmission Wire(s)

White Throttle Signal Wire/Red & Black BEC Output Wires/ Yellow RPM Signal Transmission Wire

Input / Output Wires

14AWG Input / Output Wires

Weight/Size

49g / 48x30x15.5mm


Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jery Ralainony
Excellent Customer Service

Excellent customer service. I have now ordered; the futaba cgy760r; platinum 60a esc and aling ds535 tail servo. All of them arrived very fast and announced by the delivery person.

D
Dustin Hale
Favourite esc for 380 size machines

Works perfect. Never had any problem with this esc.
