Mikado

MKD-4465

Mikado 04465 SCORPION Motor HK4015-1070 - Logo 400/400SE

Mikado 04465 SCORPION Motor HK4015-1070 - Logo 400/400SE

$124.00 USD
$124.00 USD
0% OFF Sold out
Shipping calculated at checkout.
View full details

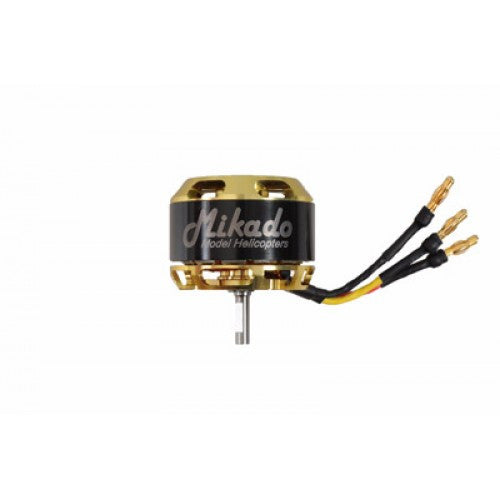

Motor Scorpion HK4015-1070

Custom made motor for LOGO 400 / LOGO 400SE
  • for 6S Lipo with pinion 22 teeth modul 057
  • two different motor mount positions possible: 3x25
  • Motorshaft: 5mm x 17,6mm
  • Weight: 211 gr.

Technical Data:

Stator Diameter

40 mm (1.56 in)

Stator Thickness

15 mm

No. of Stator Arms

12

Magnet Poles

8

Motor Wind

 6

Motor Kv

1070 KV RPM / Volt

No-Load Current (IO/8.4v)

2.0 Amps

Max Continuous Current

65 Amps

Max Continuous Power

1900 Watts

Weight

211 Grams

Outside Diameter

48.9 mm (1.9 in)

Shaft Diameter

4.98 mm (0.19 in)

Body Length

51.5 mm (2.01 in)

Overall Shaft Length

38 mm

Max Lipo Cell

6s
