Xnova Motors
SKU:XN-2216-2600

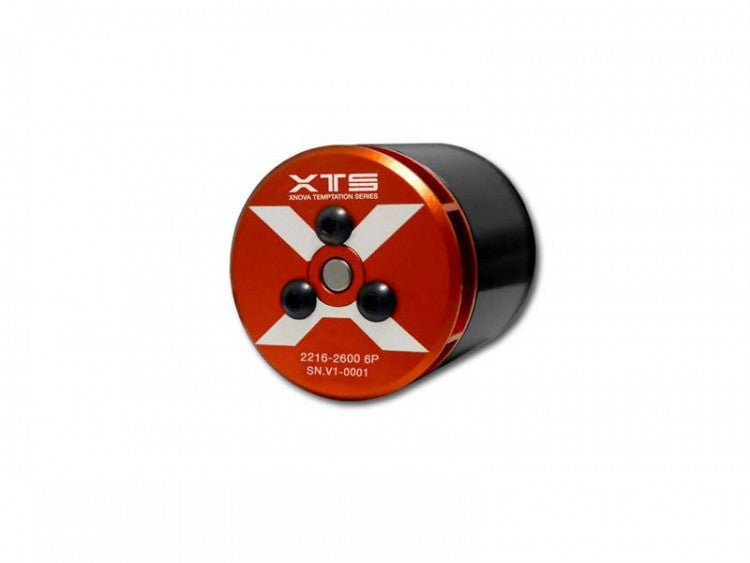

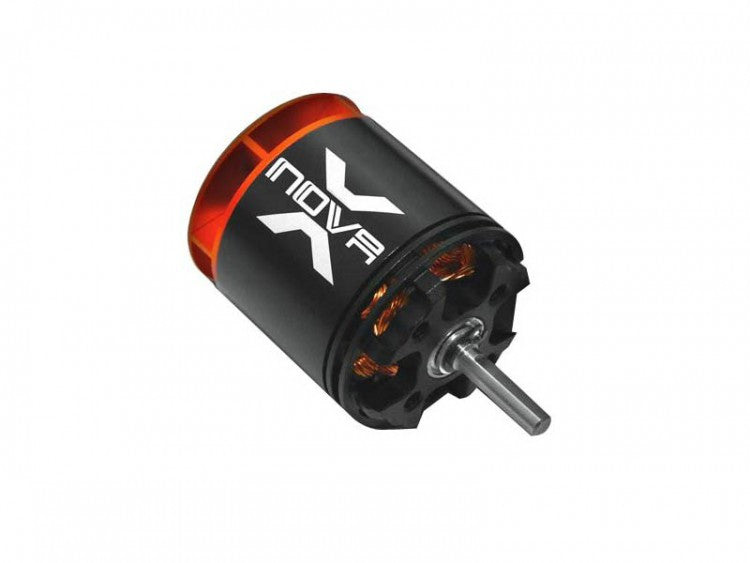

Xnova Motor XTS 2216-2600kv Shaft A for OXY 3
Xnova Motor XTS 2216-2600kv Shaft A for OXY 3
Regular price
$70.00 USD
Regular price
$87.00 USD
Sale price
$70.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Xnova brushless high performance out-runner motor designed for extreme 3D, 220-285mm blade-size helicopter where highest power to weight ratio is important.
It's a extreme power upgrade for your OXY 3, developed and approved with TAREQ ALSAADI
(Recommended ESC for 2216 series; YGE-40A; HW 40A Platinum V3, USE DEFAULT SETTINGS)
Features
- High qual. Neodym Mag.heat res. up to 150 degree C.
- Specialized wires, heat resistance up to 250 degree C.
- Precise balanced.
- High performance stator metal sheet.
- High quality NMB bearings.
- Marked leading high efficiency up to 86%.
- Cooler running.
- Superb quality and machining of CNC parts.
- Improved torque and power output.
Specs
| Slots & Poles | 9n6p |
| Winding T | D |
| rpm/V | 2600 |
| Volt (V) | 15/ 25 |
| Io(A) | 2.7 / 3.5 |
| Rm (mohm) | 36 |
| Weight (without connector) (g) | 75 |
| Body Length (no shaft) mm | 33.8 |
| Diameter (mm) | 28.5 |

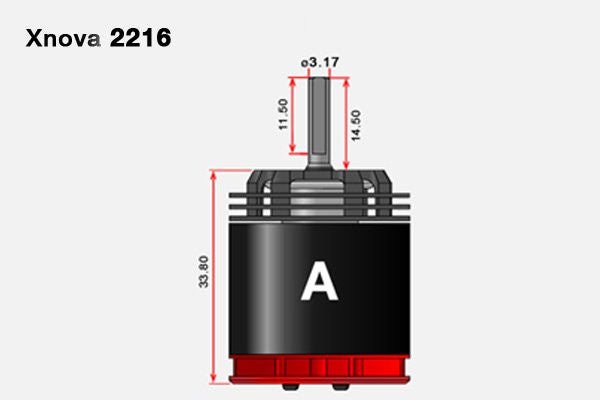

| Shaft Length (mm) (Details pictures) | 14.5 |
| Shaft Dia. (mm) | A=4mm to 3.17 on pinion side |
| Mounting Holes CTC Distance (mm) | 16*4 |
| Mounting Screw | M3x0.5 |
| Max Eff. Curr. | 33.54 / 49.30 |
| Max Eff. | 83.90 / 85.80 |
| Kt (Nm/A | 0.0037 |
| Km (Nm/sqrt(w)) | 0.0194 |
| Max Continuous Power(Watts) | 720 |
| Peak Continuous Power(Watts) (2 sec) | not provided |
| Max Continuous Current(Amps) | 32 |
