MKS Servo
SKU:MKS-HBL550
MKS X5 HBL550 Standard Cyclic Servo
MKS X5 HBL550 Standard Cyclic Servo
常规价格
$167.99 CAD
常规价格
促销价
$167.99 CAD
单价
单价
结账时计算的运费。
无法加载取货服务可用情况
MKS HBL550 X5 standard servos for cyclic.
SPECIFICATIONS
|
Dead Band |
0.001ms (Default) |
|
Control System |
+Pulse Width Control |
|
Working Frequency |
1520μs / 333hz |
|
Operating Voltage |
5 ~ 8.4 Volts |
|
Operating Temperature Range |
-10 to + 60 Degree C |
|
Operating Speed (6V) |
0.117 sec/60 ° degrees at no load |
|
Operating Speed (7.4V) |
0.094 sec/60 ° degrees at no load |
|
Operating Speed (8.4V) |
0.085 sec/60 ° degrees at no load |
|
Stall Torque (6V) |
402oz/in (29 kg/cm) |
|
Stall Torque (7.4V) |
499 oz/in (36 kg/cm) |
|
Stall Torque (8.4V) |
527 oz/in (38 kg/cm) |
|
Motor Type |
Brushless Motor |
|
Potentiometer Drive |
Indirect Drive |
|
Bearing Type |
12x8 mm Double bearings |
|
Gear Type |
Alloy gear |
|

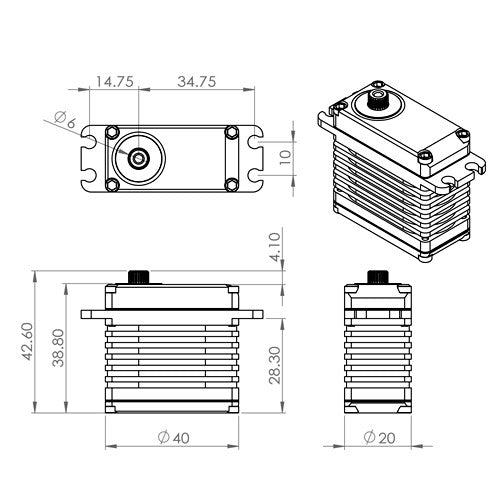

Dimensions |
40 x 20 x 38.5 mm |
|
Weight |
79.5 g |
