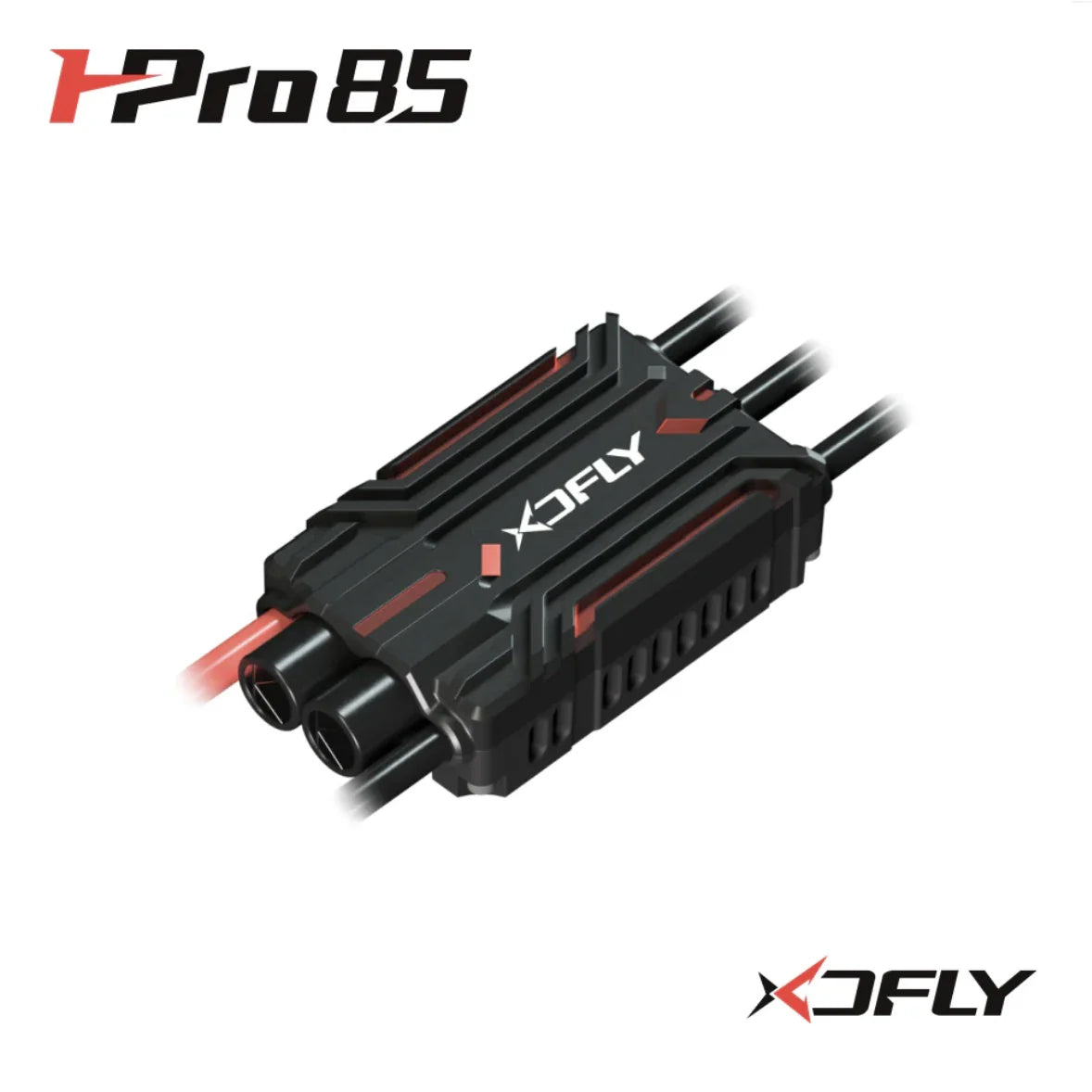

XDFly HPro 85A SBEC ESC 3-6S (For 380-420 Helicopters)

XDFly HPro 85A ESC (3–6S, SBEC) – 380–420 Class

The XDFly HPro 85A is a next-generation brushless ESC built for demanding setups in 380–420 class helicopters and high-performance fixed-wing models. It supports 3–6S LiPo packs and includes an adjustable SBEC (6–12V) for modern HV servos and FBL systems, combining smooth control, robust telemetry, and comprehensive protection.

Key Features

• High-speed 32-bit G4 processor up to 170 MHz for fast response and precise throttle/gov control.
• New-generation MOSFETs for lower heat, strong burst endurance, and improved reliability.
• Power-on self-check for short circuit, motor phase loss, throttle zeroing, and input voltage range.
• Thermally optimized case increases heat-dissipation surface area for cooler running.
• Helicopter governor with adjustable constant-speed sensitivity for consistent head speed.
• Adjustable stall-landing timer helps prevent crashes caused by handling errors.
• Flexible programming via phone app (Android/iOS), Mikado VBCt/e, RotorFlight 2, and Jeti.
• Telemetry support: VBCt/e, RotorFlight 2, Futaba S.Bus2, Jeti, MSH Brain, and iKon for real-time data.
• Comprehensive protection suite: abnormal input voltage, startup faults, over-temperature, signal loss, overload, low-voltage, and over-current.

Specifications
