Hobbywing RPM Sensor

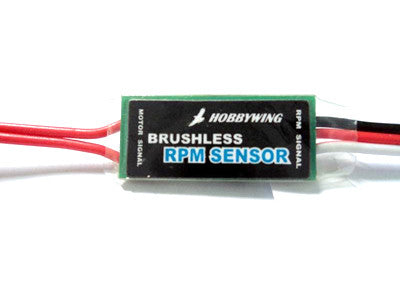

Hobbywing RPM Sensor (99060)

The Hobbywing RPM Sensor is a compact accessory designed for high-voltage speed controllers. It detects voltage changes on the brushless motor wires and converts them into a precise RPM signal for your flybarless or governor system.

Overview & Function

This sensor reads the electrical pulses from the motor leads and outputs a clean RPM signal that can be used by:

• Hobbywing HV ESCs
• Many other helicopter ESC brands
• Flybarless systems such as the Mikado VBar (as RPM input)

It’s a simple and reliable way to provide accurate head-speed data to your FBL or governor, especially on high-voltage setups.

Specifications

• Size: 23 × 10 × 2 mm
• Weight: 6 g (including input and output wires)
• Working Voltage: 3.5 V – 8.4 V (1S–2S LiPo)
• Current Draw: 1 – 5 mA
• Supported Motor Voltage: 2S – 16S LiPo
• RPM Range (2-pole motor): 1,000 – 300,000 RPM
• Operating Temperature: 0°C – 50°C (32°F – 122°F)

Wiring & Setup

The sensor has two single leads and one three-wire connector:

• Lead A & Lead B: Connect to any two of the brushless motor wires (polarity does not matter).
• 3-wire plug (Lead C):
  – Black: Ground
  – Red: 3.3 V or 5 V power
  – White: RPM signal output to FBL / governor

After wiring, configure your flybarless or governor system to read an external RPM sensor, following the setup instructions of your specific unit (e.g., Mikado VBar).

Manual Download

For detailed wiring diagrams and setup instructions, download the official Hobbywing RPM Sensor User Manual:
Download Manual (PDF)
