ILGoblin PRO 700 Kyle Stacy Edition (KSE)

The ILGoblin Pro KSE takes three-blade performance to an entirely new level. Featuring a reinforced transmission case, redesigned tail rotor system, upgraded rotor head, and advanced S682 mm main blades, it sets a new standard for strength, precision, and performance in a three-blade helicopter. Its striking orange carbon-fibre finish provides exceptional visibility and gives the model a truly distinctive appearance.

Specifications:

• Airframe weight: 2,272 g, excluding blades, battery, and electronics
• Main rotor diameter: 1,560 mm with 682 mm main blades
• Main blade length: 682 mm, three-blade configuration
• Tail rotor diameter: 296 mm with 110 mm tail blades
• Tail blade length: 110 mm, three-blade configuration
• Cyclic servos: Standard 40 mm size
• Tail servo: Standard 40 mm size
• Main rotor ratio range: 11.8:1 to 8.8:1; included 21T pulley provides a 10.1:1 ratio
• Tail rotor ratio range: 5.1:1 to 4.9:1; included 26T pulley provides a 4.9:1 ratio
• Main shaft diameter: 15 mm
• Tail shaft diameter: 8 mm
• Moulded carbon-fibre tail boom
• Recommended motor: 12S, 480–560 KV
• Battery compartment: 50 × 60 × 300 mm

Kit Includes:

• 21T motor pulley; additional pulley sizes are available separately
• Two battery trays with integrated connectors
• S6823-O orange 682 mm main blades
• S1103-O orange 110 mm tail blades

15 mm Main Shaft

The main shaft diameter has been increased to 15 mm, providing greater rigidity, strength, and precision under demanding flight loads.

New Gearbox

The redesigned gearbox is lighter than previous versions while maintaining exceptional strength. New helical gears improve durability, smoothness, and power-transfer efficiency.

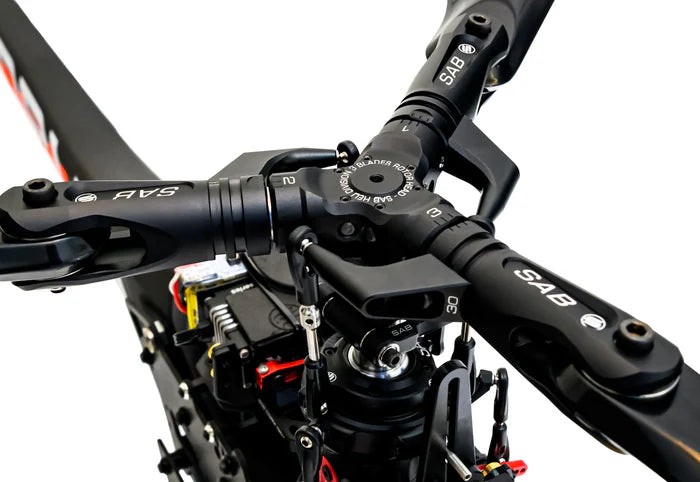

New HPS3 Centre-Hub Design

The new HPS3 D15 centre hub builds upon SAB's proven HPS3 system. Its updated design was optimized by Kyle Stacy to deliver enhanced performance, precision, and appearance.

Separate HPS3 Spindle Shafts

The rotor head uses SAB's proven separate spindle-shaft design, which has delivered reliable performance across its three-blade helicopter platforms.

HPS3 Tail System with 8 mm Tail Shaft

The upgraded HPS3 tail system maximizes tail authority and control, even when flying at very low head speeds.

S1103-O Tail Blades

The three-blade tail rotor uses 110 mm S1103-O tail blades with SAB's latest aerodynamic profile, helping to provide strong tail performance with reduced operating noise.

Special-Edition Canopy and Boom Finish

The ILGoblin Pro KSE features a distinctive orange paint scheme across the canopy and tail boom. The bright finish gives the helicopter a unique appearance while providing excellent visibility in flight.

Premium Carbon-Fibre Construction

The canopy and tail boom are manufactured from high-grade carbon fibre, helping to reduce weight while maintaining excellent rigidity and structural strength.

Self-Centering Titanium Blade Washers

Self-centering titanium blade washers automatically position the blades correctly, helping to improve rotor-head precision and consistency.

Quick-Connect Battery System

The rear-loading battery system allows batteries to be installed and removed without taking off the canopy. Integrated connectors provide a fast, clean, and convenient battery connection.
