SCORPION POWER
SKU:HKII-4225-500KV

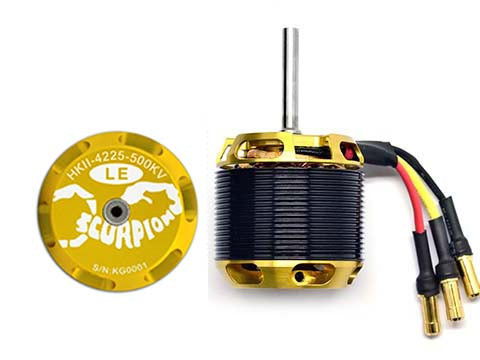

Scorpion HKII-4225-500KV Limited Edition Brushless Motor - Goblin Piuma
Scorpion HKII-4225-500KV Limited Edition Brushless Motor - Goblin Piuma
Impossible de charger la disponibilité du service de retrait
The Scorpion HKII-4225-500KV Limited Edition motor is designed for 600-class and lightweight 700-class helicopters running on 12S LiPo power. Hand-wound with a single strand of 1.3 mm wire, it delivers excellent efficiency, strong power, and reliable performance for demanding electric helicopter applications.
The motor supports up to 3,550 watts and 80 amps continuously, with peak output of 5,770 watts and 130 amps for up to 5 seconds. Its 0.2 mm stator laminations, high-temperature windings, and 200°C-rated magnets help reduce losses and improve durability.
Precision CNC-machined components and a gold electroplated finish provide excellent strength and long-lasting protection. Scorpion motors include a 2-year warranty against manufacturing defects; bearings are considered normal wear items and require regular inspection and lubrication.
Mounting Note: This motor uses 30 mm mounting-hole spacing.
Specifications
| Stator Size | 42 × 25 mm |
| Stator Configuration | 12 Arms / 10 Poles |
| Motor Wind | 12-Turn Delta |
| Motor Wire | Single-Strand 1.3 mm |
| Motor KV | 500KV |
| No-Load Current | 1.62 A at 10V |
| Motor Resistance | 0.018 Ohm |
| Maximum Continuous Current | 80 A |
| Maximum Continuous Power | 3,550 W |
| Maximum Peak Current | 130 A for 5 Seconds |
| Maximum Peak Power | 5,770 W for 5 Seconds |
| Maximum Battery | 12S LiPo |
| Weight | 393 g |
| Outside Diameter | 52.3 mm |
| Body Length | 51.5 mm |
| Shaft Diameter | 5.98 mm |
| Overall Shaft Length | 91.5 mm |
| Motor Timing | 5° |
| Drive Frequency | 8 kHz |
Included in the Box
- 1 × Scorpion HKII-4225-500KV Motor
- 3 × Female Connectors
- 3 × Heat-Shrink Tubes
Shipping Weight
660 g
