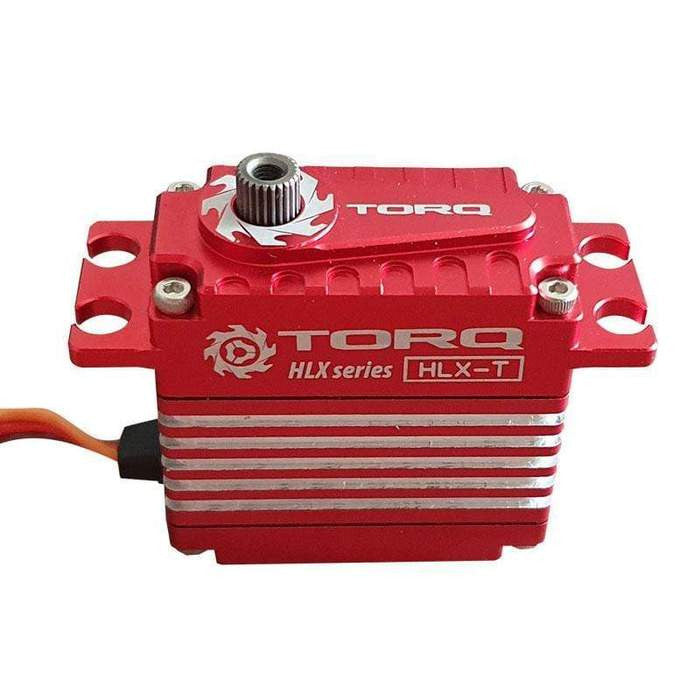

Torq HLX Full Size Tail Servo

Features:

- Using the newest Hall Sensor Technology

- Blistering 0.035 Second Transit Speed

- Dedicated Helicopter Rudder Servo

- Incredible Levels of Speed & Performance

- Ultra Precise, High Resolution Control

- Newly Design Steel Gear Train for Maximum Strength

- Excellent Thermal Dissipation via Finned 6061 Aluminum Case

- 8.4V High Voltage Ready

- Optimized for High Demand Rudder Control

- 6 Ball Bearings Construction

Speed:

0.035 sec / 60° @ 7.4V

0.04 sec / 60° @ 6.0V

Torque:

11.0Kg.cm / 97.21 oz. in. @ 7.4V

9.0Kg.cm / 83.32 oz. in. @ 6.0V

Specifications:

Motor Type: Brushless

Servo Arm Type: Futaba

Working Pulse Width / Frequency: 760us / 560Hz 450us-1050us

Weight: 80g

Dimensions: 40mm x 20mm x 340mm (LxWxH)

Voltage Range: 6.0V - 8.4V

Usage Note:

For helicopter rudder usage only. Please note that the TORQ HLX-T servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
