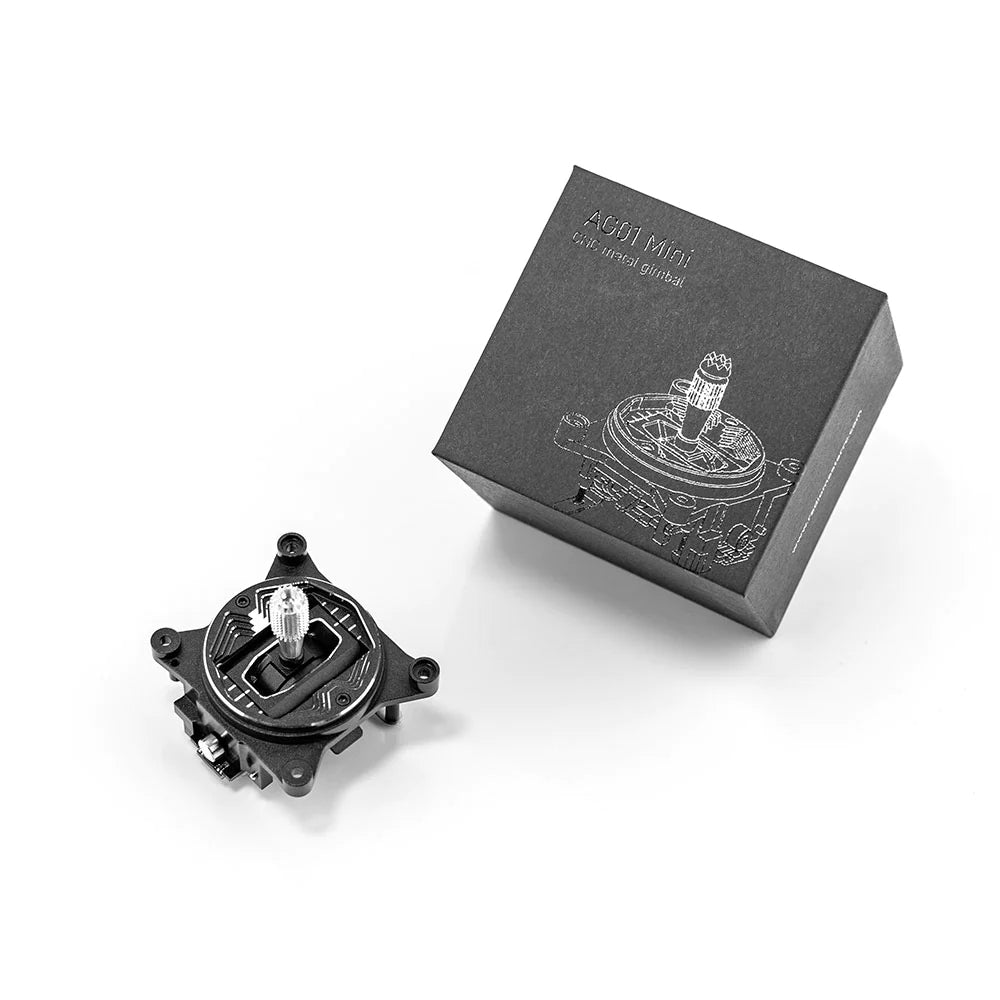

MINI Hall Gimbals for TX12 & Zorro

Specifications

• Name: Mini Hall Gimbal
• Sensor type: Hall Sensor
• Working voltage: DC 3.3V
• Linearity: Real-time (No delay)
• Adjustable vertical travel range: 38°—54°
• Self-centering adjustment : Yes
• Easy mode adjustment
• Adjustable tension : Yes
• Quad bearing: Yes
• Temperature range: -20°C-85°C
• Size: 49*42*48mm
• Weight: 42g(±0.3g)

Installation for Zorro & TX12

The Mini gimbals are shipped as self-centering by default and are compatible with both the Zorro and TX12 Radios.

FOR ZORRO

The Zorro radio is configured as Mode 1 or Mode 2 by the screws mounted in the rear case of the radio. Both gimbals should be installed in self-centering configuration (as default out of the box) in the Zorro radio. Once the radio is re-assembled the screws in the rear case of the Zorro will set the throttle gimbal.

FOR TX12

One gimbal must be set as throttle and one as self-centering before installation in the radio.
