AP800 Digital Pitch Gauge HET80001

AP800 Digital Pitch Gauge HET80001

Regular price $53.99 CAD
Regular price Sale price $53.99 CAD
0% OFF Sold out
Shipping calculated at checkout.
View full details

Instructions: Specification:
Developed by the R&D team in Align, the new AP800 digital pitch gauge is suitable for flybar and flybarless helicopters. Auto-detecting Horizontal level , with result displayed through high contrast LCD screen, providing a simple and precise way of measuring pitch angle.

Auto-detecting Horizontal level.
Uses backlighting LCD monitor.

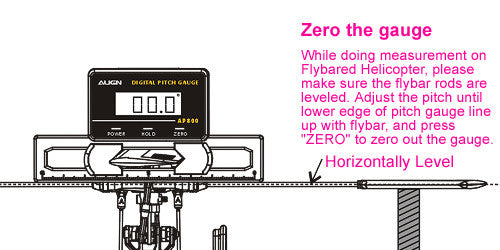

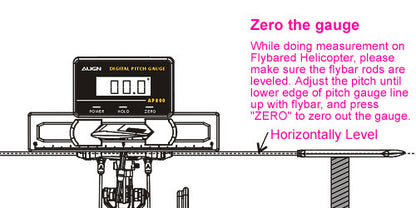

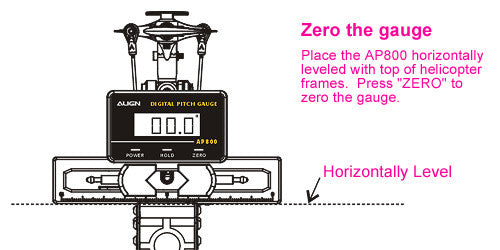

Zero and Lock function.

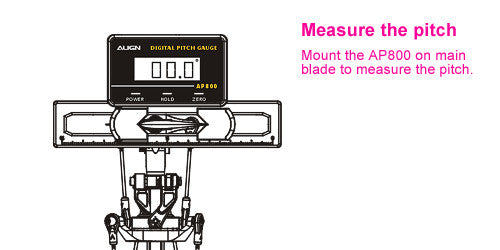

Detectable pitch range: -90° ~ 90°.
Automatic screen rotation.
Suitable for 200~800mm main blades.
Build-in energy saving function. Power shuts down after 3 mins without any movement.
Body Dimension 108x53.9x16mm
Suitable blade width 20mm~74mm
Detectable pitch range: ±90°
Resolution: 0.1°
Battery: 2X CR 2032 Lithium
Weight:38g (including battery)
