eFUEL 1200W/50A V2 Regulated Power Supply NEW!***Excluded From Sale ***

Active PFC – Built for High-Power Charging

When running high-current RC chargers, stable and efficient power delivery is critical. The SkyRC eFUEL 1200W / 50A Regulated Power Supply features active Power Factor Correction (PFC), allowing your equipment to draw power more efficiently while maintaining consistent output under load.

This results in improved efficiency, reduced energy loss, and reliable performance when charging large LiPo packs, running parallel boards, or powering multiple chargers simultaneously. With universal 100–240V AC input, it's ready for use anywhere.

Intelligent Cooling System

Designed for extended high-power use, the built-in cooling system automatically activates when internal temperatures reach 50°C, ensuring stable and safe operation during long charging sessions.

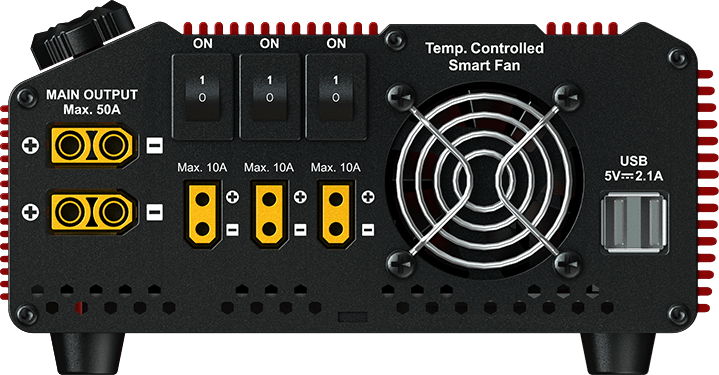

High Output & Multi-Port Design

With a total output of 1200W, this power supply is built for demanding setups:

• Main Outputs: Up to 50A combined for high-performance chargers
• Auxiliary Outputs: Three additional ports delivering up to 10A each
• Independent Switches: Each auxiliary port includes its own power control for convenience

Specifications

• Input Voltage: 100–240V AC
• Input Frequency: 50–60Hz
• Output Voltage: 15–30V DC (±0.5V)
• Output Current: 50A ±1A
• Max Output Power: 1200W
• Power Factor: >0.98
• Efficiency: ~89%
• Cooling: Internal fan (auto temperature control)
• Display Accuracy: Voltage ±0.3V / Current ±0.5A
• Operating Temperature: 0–40°C
• Over Temperature Protection: ~65°C
• Input Fuse: 20A
• Weight: 3.08 kg

Dimensions

• Length: 305 mm
• Width: 170 mm
• Height: 85 mm

In the Box

• 1 × SkyRC eFUEL 1200W Power Supply
• 1 × AC Power Cord
• 1 × Instruction Manual

Manual

Download Instruction Manual (PDF)
