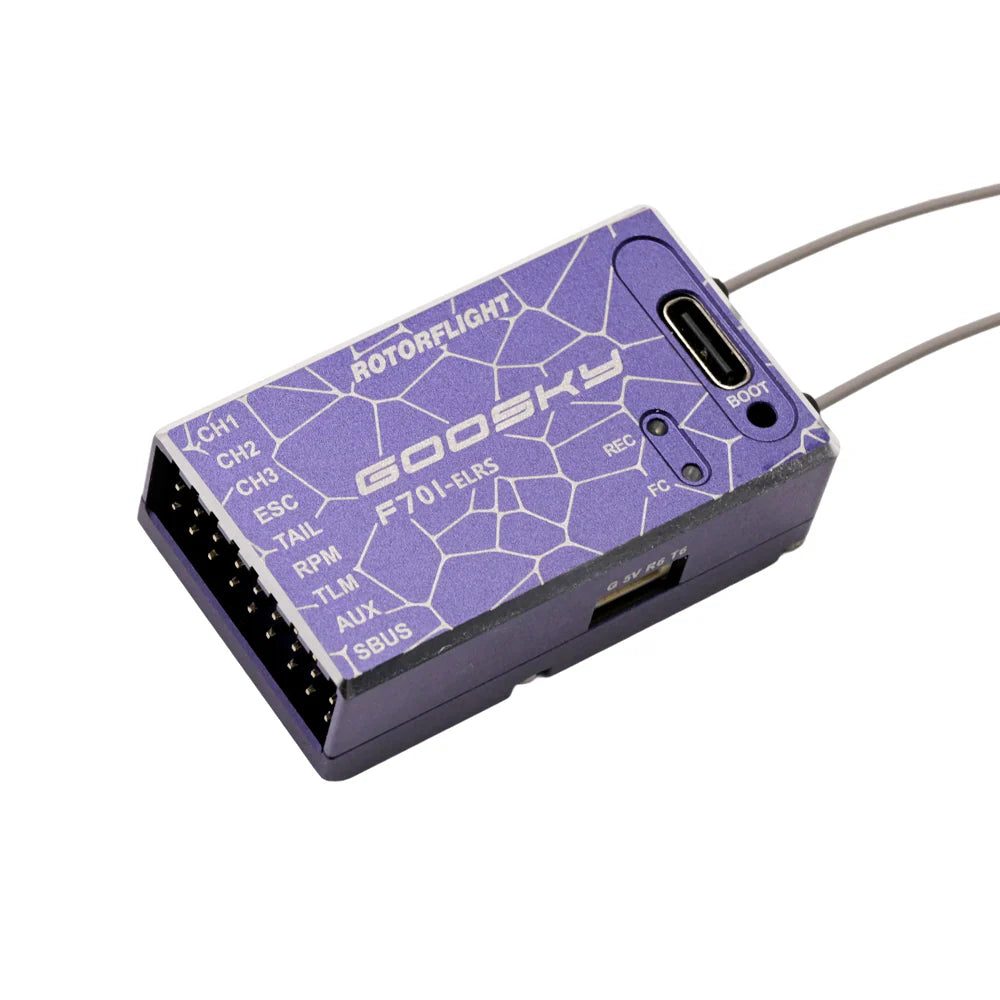

Goosky F701-ELRS RotorFlight Flybarless Unit w/ built-in ELRS Receiver (Dawn Blue)

Goosky F701-ELRS RotorFlight Flybarless Unit w/ built-in ELRS Receiver (Dawn Blue)

$126.99 CAD
$126.99 CAD
0% OFF Sold out
Shipping calculated at checkout.
View full details

GOOSKY F701-ELRS Flybarless Controller is specifically optimized and designed for Rotorflight firmware, offering low-latency response and stable attitude control tailored for RC helicopter flight characteristics. An onboard ExpressLRS (ELRS) receiver is integrated via UART1. No external receiver is required, reducing wiring complexity and enabling direct plug-and-play operation

Specifications
Main MCU  STM32F722RET6
Gyroscope / Inertial Measurement Unit (IMU) ICM42688P
Barometer SPLC6
Blackbox Flash Memory 256MB
Firmware RotorFlight
Servo Ports 4: CH1, CH2, CH3, TAIL
Supported Receiver Protocol CRSF, ELRS, S.BUS, FBUS, PPM, MSP, DSMX
Supported ESC Protocol PWM, Oneshot, Multishot, DShot300, DShot600
Motorized Tail Supported
RPM Sensor Supported
UART Ports 6
Input Voltage Range 5-16V
Serial Port Output Power 5V / 1.5A (Ensure connected devices do not exceed this current)
Built-in ELRS Receiver Yes (UART1)
F701 Unit Size 46 x 26 x 14.5mm ; 22g
Package Size 90 x 60 x 35mm ; 84g



Configuration Software and Tutorials

Please visit https://rotorflight.org/ for the latest update.



Package includes

  • 1 * F701-ELRS Flight Controller Unit
  • 1 * USB Type-C 100cm Cable
  • 1 * JST-GH1.25-4P 15cm wire
  • 1 * JST-ZH1.5-3P (DSMX Remote Receiver) 15cm wire
  • 1 * Dupont 2.54-3P male to JST-GH1.25-4P 12cm wire
  • 1 * Dupont 2.54-3P female to JST-ZH1.5-3P 6.5cm wire (ESC Telemetry)
  • 1 * Double-Sided Tape
