Blade Heli
SKU:SPMSH 3055

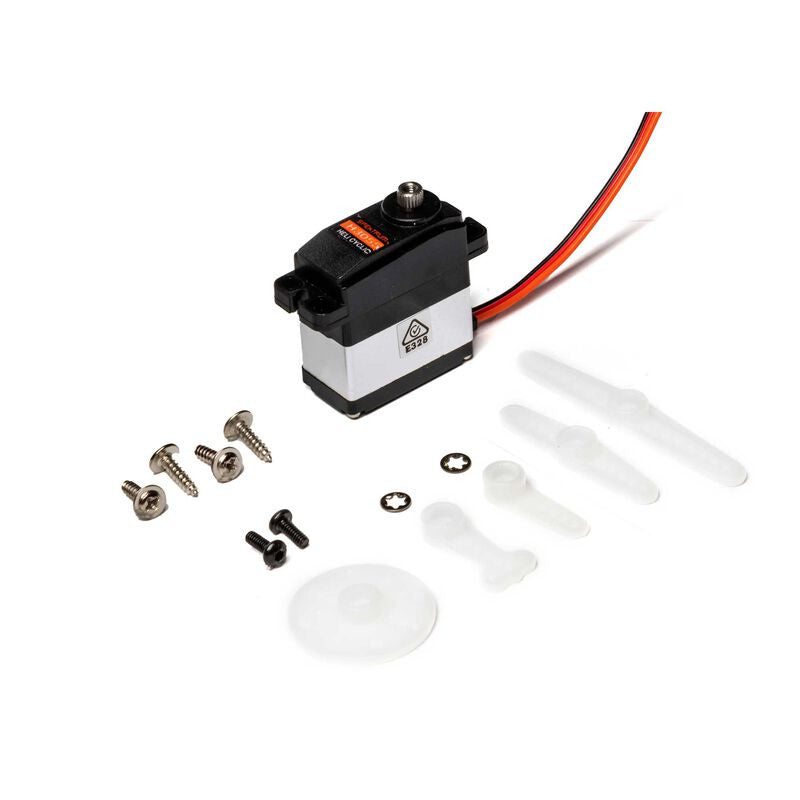

H3055 Sub-Micro Digital Mid-Torque Ultra-Speed Metal Gear Heli Cyclic Servo
H3055 Sub-Micro Digital Mid-Torque Ultra-Speed Metal Gear Heli Cyclic Servo
Regular price
$39.00 USD
Regular price
Sale price
$39.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Details
Overview
Upgrade your 250-450 size heli cyclic servos with the high speed and accurate H3055 Servo. Touting a blazing fast .053 transit speed, impressive 36 oz-in torque and industry leading position accuracy and holding power, these are a great sub-micro size servo to upgrade many Blade Bind and Fly models and a perfect pair for many 250-450 size kit models requiring a sub-micro size servo form factor. Frequency: 333Hz
Product Specifications
| Deadband | 2 |
| Product Height | 1.17" (29.6mm) |
| Servo Type | Digital |
| Programmable | No |
| Servo Size Category | Sub-Micro |
| Connector Wire Length | 7.87" (200mm) |
| Product Width | 0.47" (12mm) |
| Product Length | 0.91" (23mm) |
| Servo Operating Voltage | 4.8 - 6.0V |
| Application | 250 - 450 size heli, cyclic |
| Max Servo Torque | 20-39 oz-in |
| Product Weight | 0.46 oz (12.9 g) |
| Gear Type | Metal |
| Maximum Servo Speed | 0.050-0.099 sec |
| Wire Gauge | 22 AWG |
| Maximum Servo Torque | 4.8V 29 oz-in (2.1kg-cm), 6V 36 oz-in (2.6kg-cm) |
| Bushing Or Bearing | Bearing |
| Bearing | Single |
