Hobbywing

SKU:HW-30203100

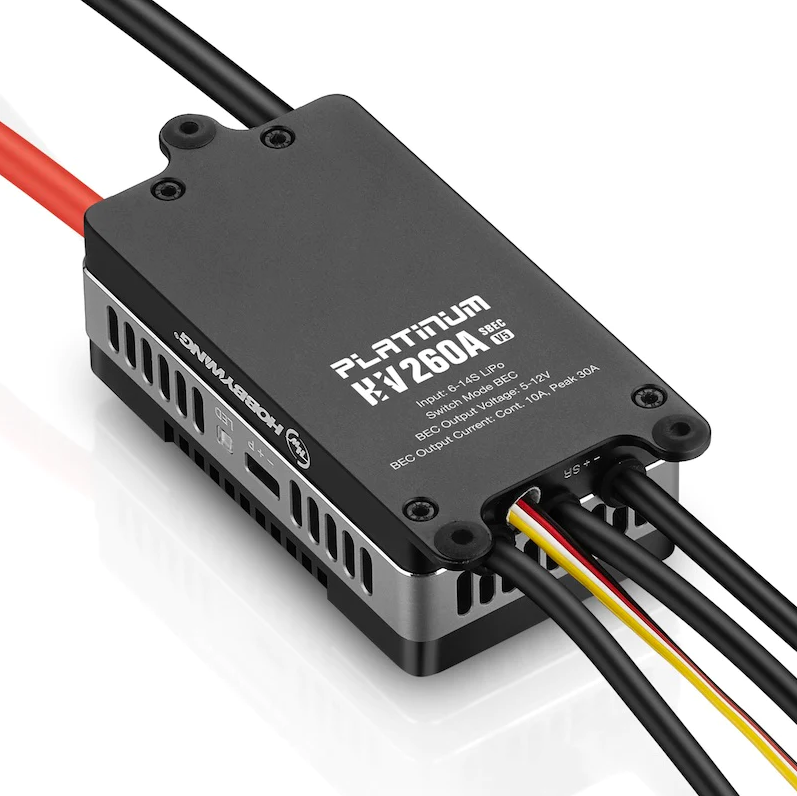

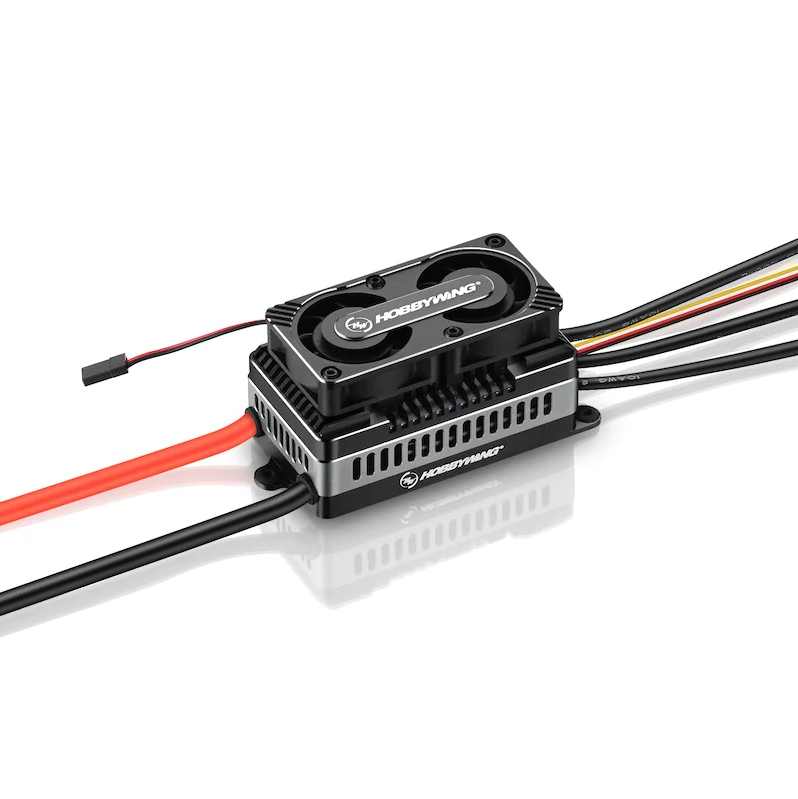

Hobbywing Platinum Pro 260A HV V5 ESC - SBEC

Hobbywing Platinum Pro 260A HV V5 ESC - SBEC

Regular price $679.99 CAD
Regular price Sale price $679.99 CAD
0% OFF Sold out
Shipping calculated at checkout.
View full details

The all new Hobbywing Platinum Pro 260A ESC with 12V BEC output, ready for the high torque 12V servos.

Specifications

Continuous/Peak current

260A / 400A

Input voltage

6-14S LiPo battery

BEC

Switch Mode BEC: output voltage 5-12V adjustable (adjusted 0.1V), output current cont. 10A, Peak 30A

Input/Output wires

1 x black and 1x red 8AWG silicone wires / 3 x black 10AWG silicone wires

Independent parameter programming interface

Connect LCD program box or OTA module, or to power the cooling fan

LED light

Display the statuses and fault alerts

Size/Weight

89 x 50 x 34mm / 297g (With wires)

Mounting holes

M3, 39 x 98mm

Application

700-800 class electric helicopter (main rotor length 700-880mm), or fixed-wing



Manual Download : Hobbywing 260A Pro V5 Manual
