Charger S6 1100W 40A DC Battery Charger

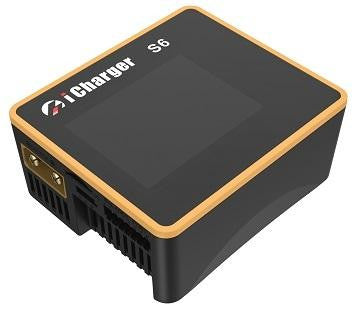

iCharger S6 1100W 40A 6S DC Smart Battery Charger

The iCharger S6 is a compact, high-power DC smart charger designed for pilots who want serious charging performance in a small and portable package. Built as a more powerful companion to the popular X6, the S6 delivers up to 1100W of charging power and up to 40A charge/discharge current, while remaining close in size to smaller field chargers.

With support for up to 6S lithium batteries, strong balancing performance, regenerative discharge, and a full-color IPS display, the S6 is an excellent choice for RC helicopter, airplane, car, boat, and FPV pilots who need reliable, high-output charging at home or at the field.

Despite its compact size, the S6 includes many of the advanced functions iCharger users expect, including multi-chemistry battery support, internal resistance measurement, battery data logging, firmware upgrade support, and flexible charging/discharging options.

⚡ Key Features

• 🔋 1100W maximum charging power for fast charging of high-capacity battery packs.
• ⚡ Up to 40A charge/discharge current, offering more output than many chargers of similar size.
• 🚁 Supports up to 6S lithium batteries, including LiPo, Li-Ion, LiFe, LiHV, LTO, and NiZn packs.
• 🎯 2A balance current helps improve balancing speed and battery maintenance.
• ♻️ Regenerative discharge capability allows up to 1100W discharge power when connected to a suitable battery bank or power source.
• 🔥 External discharge support provides up to 1200W discharge capability when used with the proper external load setup.
• 📈 Battery internal resistance measurement helps monitor pack condition and performance over time.
• 🖥️ Full-color IPS display provides clear charging information, including voltage, current, power, capacity, internal resistance, status, and temperature.
• 💾 Battery memory and data support for easier setup, logging, and charger management.
• 🌡️ Intelligent fan control adjusts cooling automatically based on internal temperature.
• 🛡️ Built-in safety protections for reverse polarity, input voltage/current, battery temperature, charging capacity, time limit, and maximum power.
• 🔄 Firmware upgrade support through Junsi software tools.

📊 Specifications
