Immersion RC

SKU:IRC-SN5G8LHPATCH

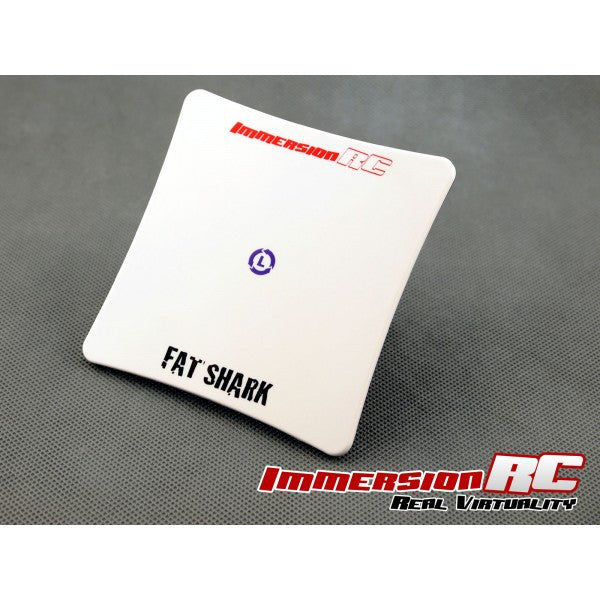

IRC SpiroNet 5.8Ghz LH Patch Antenna

IRC SpiroNet 5.8Ghz LH Patch Antenna

Regular price $19.99 CAD
Regular price $92.41 CAD Sale price $19.99 CAD
78% OFF Sold out
Shipping calculated at checkout.
View full details

Blowout deal! This is still one of the best patch antennas out there for anyone looking to push the range and ensure the most solid signal possiible. Paired up with an antenna tracker or using manual head tracking techniques, this patch will guarantee solid video at even extreme distances.

Compact 13dBi Left Hand Circularly Polarized 5.8GHz patch antenna, custom designed for the FPV market. Push the limits of range on 5.8GHz, with multi-km flights possible even on CE-legal 25mW systems.

  • SMA connector compatible with all FatShark/ImmersionRC 5.8GHz products
  • Left-hand circular polarization
  • 5.8GHz ISM Band
  • 13dBi gain
  • Beam width 35 degrees (H + V)


This 5.8GHz Circularly Polarized patch antenna was custom-designed, with no expense spared, for the FPV market. Light enough to be mounted directly onto an LCD headset, or directly onto the front of one of our Uno, or Duo receivers. This antenna will breathe new life into the CE-Legal 25mW systems, allowing multi-km range with ease. For 600mW systems, its time to start worrying about the range of the control link, since with a combination of this antenna, and a spiroNET omni, the video range can greatly exceed the control range of most 2.4GHz radios.

Precision manufactured with very tight tolerances ?and 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance.

F/B ratio is 26dB, VSWR is < 1.5:1 (5740 - 5860MHz). Impedance is 50 ohms.
