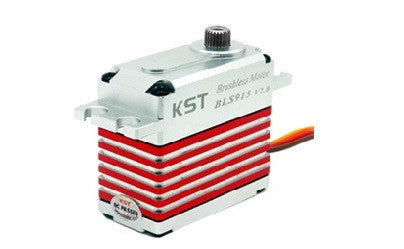

KST BLS915 V8.0 Brushless HV Standard Cyclic Servo

KST BLS915 V8.0 Brushless HV Standard Cyclic Servo

$100.00 USD
$100.00 USD
0% OFF Sold out
Shipping calculated at checkout.
View full details

KST BLS915 V8.0 – High-Performance Cyclic Servo

The KST BLS915 V8.0 is a high-performance cyclic servo engineered for serious 3D aerobatics, making it an ideal upgrade for competitive flyers. Packed with enhancements over the BLS815 V2, it delivers exceptional performance and reliability.

  • Hardened steel gearbox in a robust aluminum housing with cooling fins — extends durability and ensures long-term precision.
  • Class-leading torque and speed: Up to 25 kg·cm at 8.4 V and lightning-fast 0.07 s/60°, perfect for tight 3D maneuvers.
  • High-voltage operation (6.0–8.4 V), with integrated brushless electronics and support for programmable fine-tuning.
  • Optimized for 550–700 size helicopters, making it a direct fit for advanced and performance-oriented builds.

Key Specifications:

Spec Value
Voltage 6.0–8.4 V
Dimensions 40.5 × 20 × 38 mm
Torque 18 kg·cm @ 6 V · 22 kg·cm @ 7.4 V · 25 kg·cm @ 8.4 V
Speed 0.09 s/60° @ 6 V · 0.08 s/60° @ 7.4 V · 0.07 s/60° @ 8.4 V
Weight ~70–78 g
Frequency 1520 µs / 333 Hz (default); 760 µs / 560 Hz via programming
Bearings Dual ball bearings (2BB)
Temperature Range –10 °C to +65 °C
Motor Brushless DC
Housing CNC Aluminum
