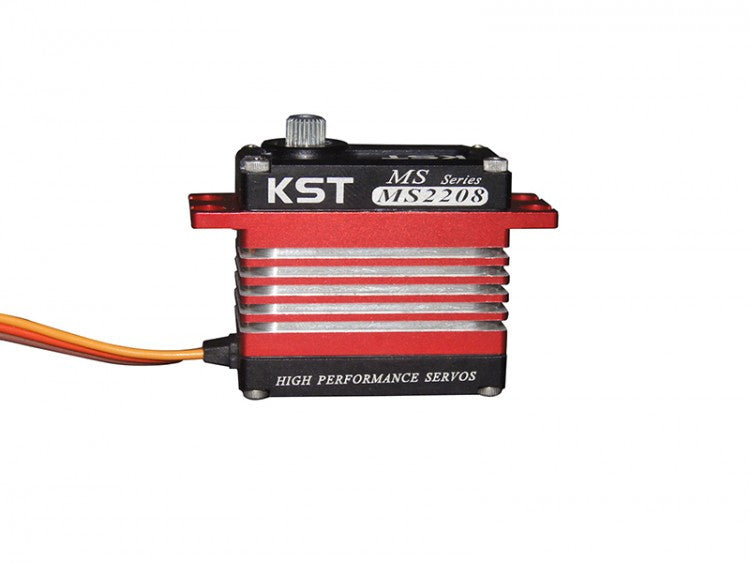

KST MS-2208 HV Standard Cyclic Servo (Hall Sensor) V2.0

The KST MS-2208 HV cyclic servo is designed to work with most 550-800 class helicopters. Different than KST X20 series that come with a pot contact, the MS series come with a magnetic sensor / hall sensor communication so it lasts much longer (never wear out), more precise and speedier than pot contact.

Specs:

• Operation Voltage: DC6.0V- 8.4V
• Torque:
• 18Kg/cm@6.0V
• 22Kg/cm@7.4V
• 25Kg/cm@8.4V
• Speed:
• 0.09sec/60°@6.0V
• 0.08sec/60°@7.4V
• 0.07sec/60°@8.4V
• Size: 40.5 x 20 x 38mm
• Working Frequency: 1520us/333Hz
• Weight: 72g
• Motor: Brushless
• Position Sensor: Contactless
• Ball Bearing: 2BB
• Material: Alu 7075 for top case, Alu 6061 for middle & bottom case.
