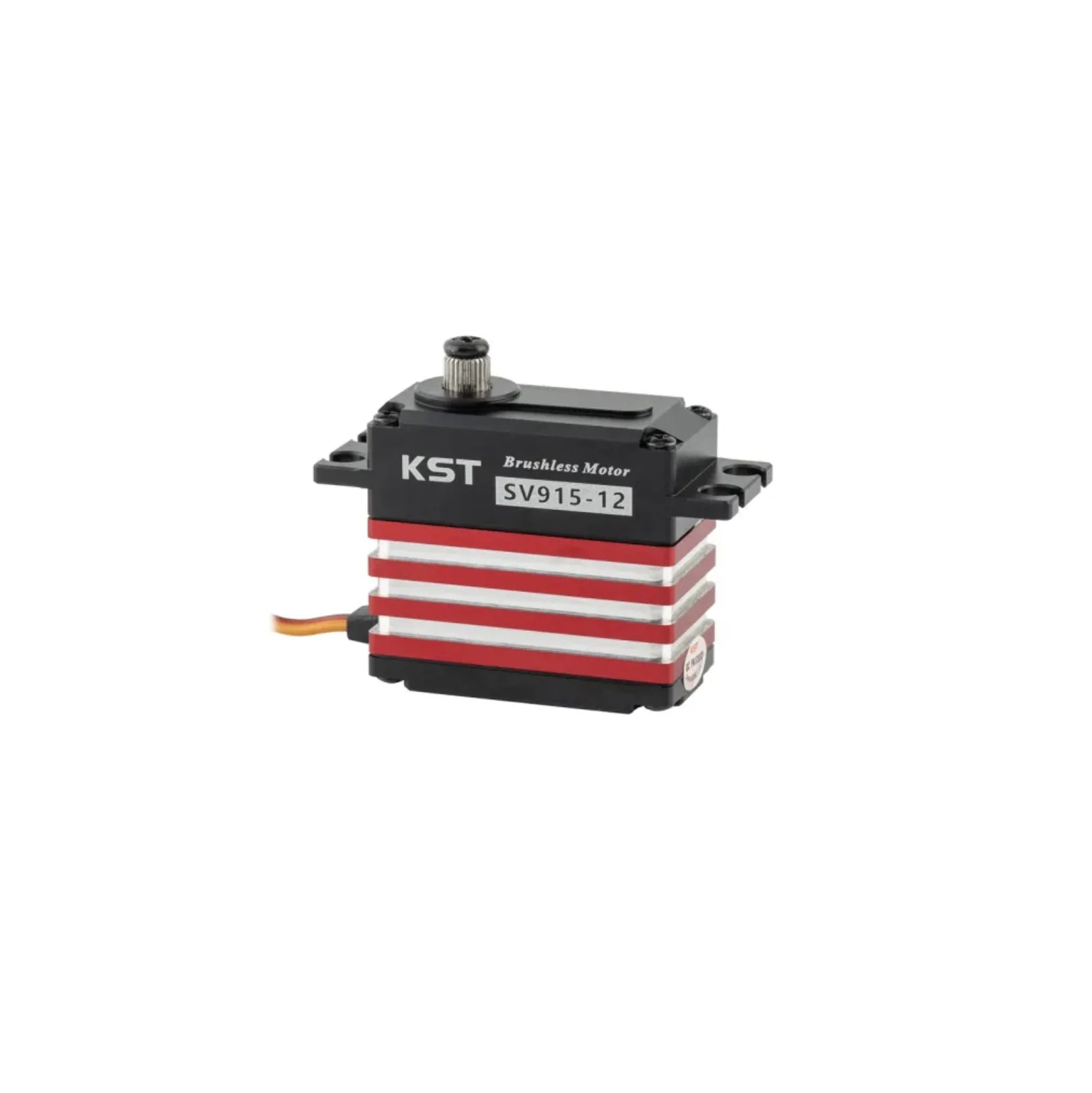

KST SV915-12 High Voltage (12V) Standard Cyclic Servo
KST SV915-12 High Voltage (12V) Standard Cyclic Servo
Regular price
$126.99 CAD
Regular price
Sale price
$126.99 CAD
Unit price
per
Shipping calculated at checkout.
ETA: March 17
Couldn't load pickup availability
KST SV915-12 High Voltage Brushless Cyclic Servo
The KST SV915-12 HV is a premium high-voltage brushless cyclic servo engineered for precision, speed, and reliability. Built for 550–700 class RC helicopters, it delivers the brute torque and smooth response required for advanced 3D maneuvers. Featuring hardened steel gears, dual ball bearings, and a CNC-machined aluminum case, the SV915-12 ensures consistent performance under the toughest flight loads—while its wide 8–13 V range supports direct HV LiPo operation without regulators.
Specifications
| Application | Cyclic servo for 550–700 class RC helicopters |
|---|---|
| Operating Voltage | 8.0 V – 13.0 V (rated 12 V DC) |
| Torque | 24 kgf·cm @ 8.4 V 28 kgf·cm @ 12 V 30 kgf·cm @ 13 V |
| Speed (60°) | 0.10 s @ 8.4 V 0.08 s @ 12 V 0.07 s @ 13 V |
| Control Signal | 760 µs pulse / 560 Hz |
| Motor / Gears | Brushless motor / Hardened steel gears |
| Bearings | Dual ball bearings |
| Case | CNC aluminum alloy |
| Dimensions | 40.5 × 20 × 38 mm (±0.2 mm) |
| Weight | ≈ 70 g (±10%) |
| Operating Temp. | −10 °C to +65 °C |
Features
- High-voltage compatible: Runs directly on 2S or 3S LiPo setups (8–13 V) without the need for a regulator.
- Powerful torque output: Delivers up to 30 kgf·cm at 13 V for precise cyclic control under load.
- Quick and accurate: 0.07 s/60° response provides fast pitch and roll reactions for extreme 3D maneuvers.
- Brushless motor system: High efficiency and reduced wear for long-lasting reliability.
- Metal gear durability: Precision hardened steel gears ensure smooth, slop-free movement.
- CNC aluminum case: A rigid, high-strength enclosure that aids in cooling and vibration resistance.
- Dual ball bearings: Improve centering accuracy and smoothness for consistent control.
- Programmable design: Supports parameter customization such as endpoints and direction.
- Wide temperature range: Operates reliably from −10 °C to +65 °C in any environment.
