Lynx Heli

SKU:LX0369

LX0369 - 130 X - DS35 Tail Servo Mount - Silver

LX0369 - 130 X - DS35 Tail Servo Mount - Silver

Regular price $15.99 CAD
Regular price $24.41 CAD Sale price $15.99 CAD
34% OFF Sold out
Shipping calculated at checkout.
View full details

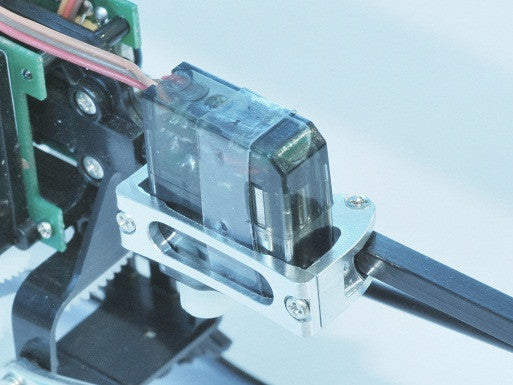

Lynx Heli Innovations has designed a super-dedicated DS35 servo support, for your 130X tail application.

Like every Lynx design, the Lynx DS 35 servo support has unique shape and features.

Two CNC parts combine together, one as enclosure for the tail case and 130X tail boom clamp, the second as cover to clamp and precisely support the DS35 servo.

Looking closer to the detail you will surprise about the clamping system we design to support the servo case.

Our clamping is focused in the 4 corner of the DS35 servo; this will assure an ultra-solid support, without compromise the servo function.

DS 35 servo case is very flexible and wrong support system can easy deform the servo case.

Like any Lynx part we aim for the strongest part with the lightest weight. We always look for upgrades that will not compromise helicopter performance.

The details and design of this tail servo support add top performance and an exotic look to your 130X tail system, giving you the opportunity of fully enjoy the superior DS35 servo performance.

FEATURES:

- Dedicated design for DS 35 servo support.

- Built-in reference pin for the correct servo installation, will give the plug and play features.

- Direct replacement for the standard 130 X tail parts, when DS 35 servo is used.

- Optimized servo clamping assure superior holding without deform servo case.

- Increased tail system performance, achieved by DS35 servo specification.

- FEA (Final Elements Analysis) design assistance, achieving the lightest weight with the maximum strength.

TECHNICAL SPECIFICATIONS:

- Tail servo support material: Aluminum 7075-T6 – clear anodized finish

- Screw material: Carbon steel plated

- Tail case assembled weight: 1.2g

PACKING LIST:

1 x CNC 130XDS35 tail servo support

2 x M1.4x4 Pan Head screws

2 x M1.4x6 Pan Head screws
