LX0800 - 130X - Main Grip Trusted - Red

Download PDF Manual here

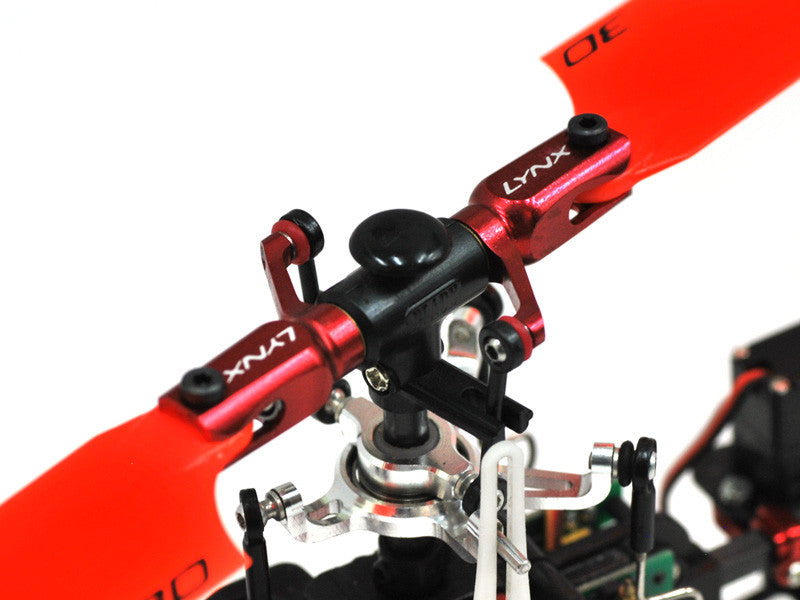

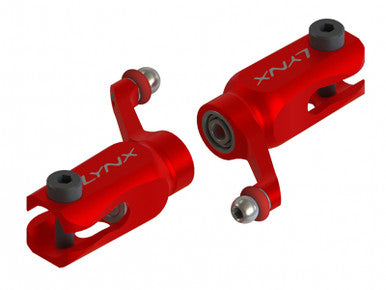

Lynx Heli Innovations has added to its lineup, 130X main blade grips with thrust bearings. We redesigned our original upgraded 7075 aluminum main blade grips to include a third thrust bearing sandwiched between a 5x2x2 inner bearing up and a beefier 6x2x2 outer bearing. Comes fully assembled and quality checked from our factory floor.

The addition of a third center thrust bearing and a bigger outer bearing improves the smoothness of axial rotation, while being more securely locked onto the spindle. Minimizing looseness and adding strength as well as increased wear resistance was the goal.

These main grips are a direct replacement for standard 130X specification parts. They can be used with most any standard or DFC upgraded head/hub.

FEATURES / SPECS:

- Optimized design for rigid and precise feathering/pitch control.

- Durability: increased crash and wear resistance.

- Direct replacement for the standard 130X parts.

- Final Elements Analysis used to achieve the lightest weight and maximum strength.

- Main grip material: Aluminum 7075-T6 - anodized finish

- Radial Bearings: ABEC 5 - Made in Japan

- Hardware: Steel 12.9 Class - DIN 912

- Assembly weight: 4.55 g

PACKING LIST:

2 x 130 X – CNC Main Grips Thrust Bearing - Red Color

2 x Link Ball 3X2.5

2 x 2x5x2 Radial Bearing

2 x 2x6x2 Radial Bearing

2 x F2-6G-W3 Thrust Bearing

2 x 2x3.5x0.2 Brass Shim

2 x O-Ring Silicon Red

2 x Hex Cap Screw M2x8

SERVICE BAG:

LX0801: 130X - Main Grip Trusted Service Bag
