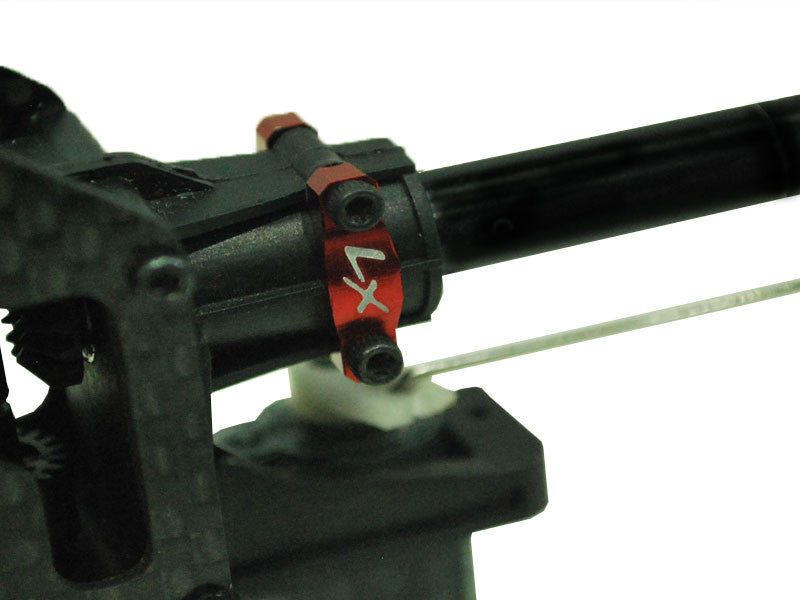

LX1629 - 180CFX - Ultra Clamp STD Boom Support - Red

Download PDF Manual here

Lynx Heli Innovations design a simple and innovative 180CFX Front Boom Mount Clamp system for who want keep think simple but have a solid boom clamp.

After many test and during our design process we discovery a weak point on 180CFX Plastic Tail Boom Support. Self-tapping screw supposed to lock the plastic support, easy get strip after few crash services. From that discovery we open different design solution options and the CNC Clamp we offer here are the simply easy fix.

Our Clamp surround the Plastic Support , there were really need to lock.

We also introduce and optional Lock Pin System for who like us want the tail solid as rock. A drill tip is supported on the package and step by step manual will guide on the final assembly.

One more time Lynx introduce simplicity and efficacy upgrade for your Heli.

Micro helicopter upgrades can be a trap; often they look nice but do little for function, and only add weight.

We are pilots, and we know what and heli need.

FEATURES:

- Direct Upgrade for the standard 180CFX Tail Boom Mount.

- Easy and smart clamp and lock system of your tail boom.

- Optional Lock Pin, for ultimate precise lock.

- No more boom in-fly move / torsion.

- FEA (Final Elements Analysis) design assisted, resulting in lightweight and maximum strength.

TECHNICAL SPECIFICATIONS:

- Clamp Materials: Aluminum 7075-T6 – anodized

- Weight Assembly: 0.25 g

PACKING LIST:

1 x Set of 80CFX - Ultra Clamp STD Boom Support - Red

Hardware and Drill Tip Toll for easy and supported assembly.
