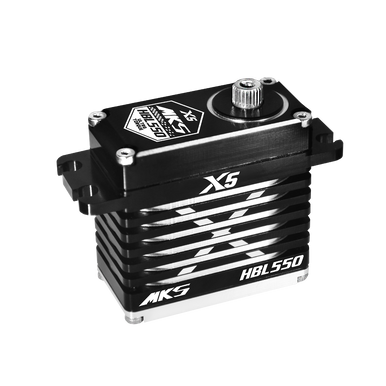

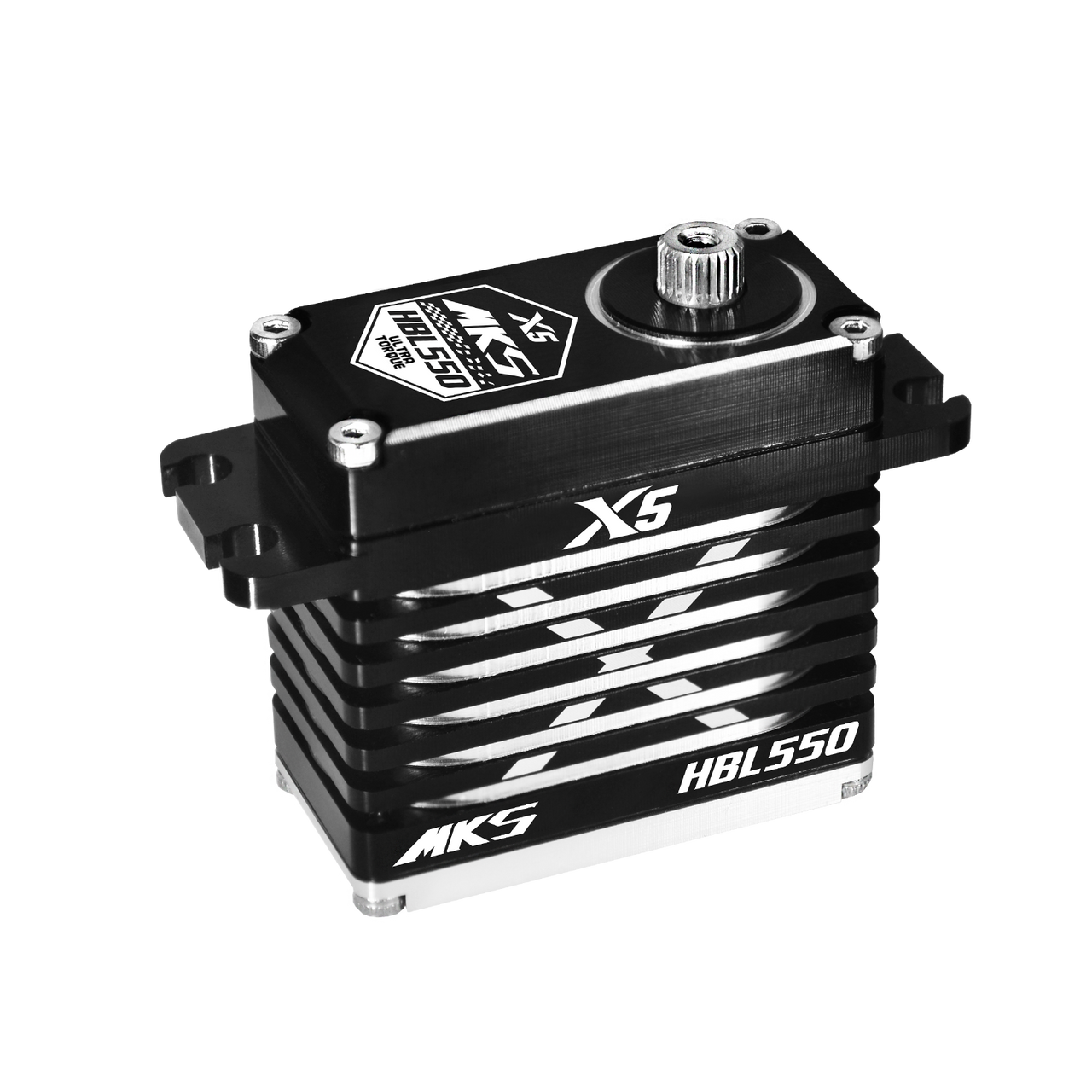

MKS X5 HBL550 Standard Cyclic Servo

MKS X5 HBL550 Standard Cyclic Servo

Regular price $119.00 USD
Regular price Sale price $119.00 USD
0% OFF Sold out
Shipping calculated at checkout.
View full details

MKS HBL550 X5 standard servos for cyclic.

SPECIFICATIONS

Dead Band

0.001ms (Default)

Control System

+Pulse Width Control

Working Frequency

1520μs / 333hz

Operating Voltage

5 ~ 8.4 Volts

Operating Temperature Range

-10 to + 60 Degree C

Operating Speed (6V)

0.117 sec/60 ° degrees at no load

Operating Speed (7.4V)

0.094 sec/60 ° degrees at no load

Operating Speed (8.4V)

0.085 sec/60 ° degrees at no load

Stall Torque (6V)

402oz/in (29 kg/cm)

Stall Torque (7.4V)

499 oz/in (36 kg/cm)

Stall Torque (8.4V)

527 oz/in (38 kg/cm)

Motor Type

Brushless Motor

Potentiometer Drive

Indirect Drive

Bearing Type

12x8 mm Double bearings

Gear Type

Alloy gear

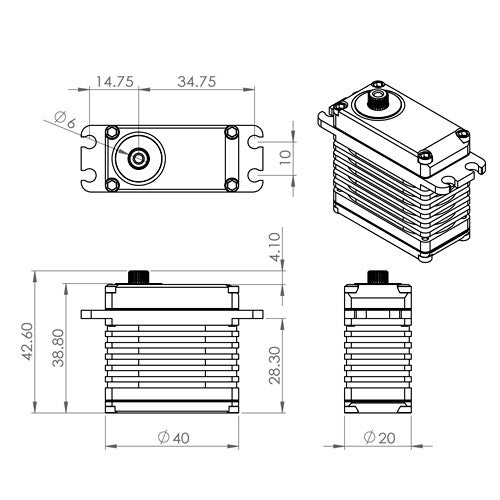

Dimensions

40 x 20 x 38.5 mm

Weight

79.5 g
