MKS Servo

SKU:MKS-HV93I

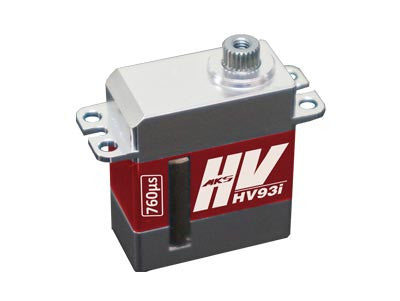

MKS HV93I Micro High Voltage Tail Servo

MKS HV93I Micro High Voltage Tail Servo

Regular price $113.99 CAD
Regular price Sale price $113.99 CAD
0% OFF Sold out
Shipping calculated at checkout.
View full details
Details
  • SKU: MKS-HV93I
  • Dead Band: 0.001ms (Default)
  • Control System: +Pulse Width Control
  • Working Frequency: 760μs / 560hz
  • Operating Voltage: 3.8~8.4 V DC Volts
  • Operating Speed (6V): 0.041 sec/60° degrees at no load
  • Operating Speed (8.4V): 0.031 sec/60° degrees at no load
  • Stall Torque (6V): 25 oz/in (1.8 kg-cm)
  • Stall Torque (8.4V): 36.11 oz/in (2.6 kg-cm)
  • Motor Type: Coreless Motor
  • Potentiometer Drive: Direct Drive
  • Bearing Type: Dual Ball Bearings
  • Gear Type: Chrome-Titanium alloy gear
  • Programmable: NO
  • Dimensions: 23X12X27.25 mm (0.9X0.47X1.07 in)
  • Weight: 19.87 g
