Xnova Motors

SKU:XN-4530L-525A

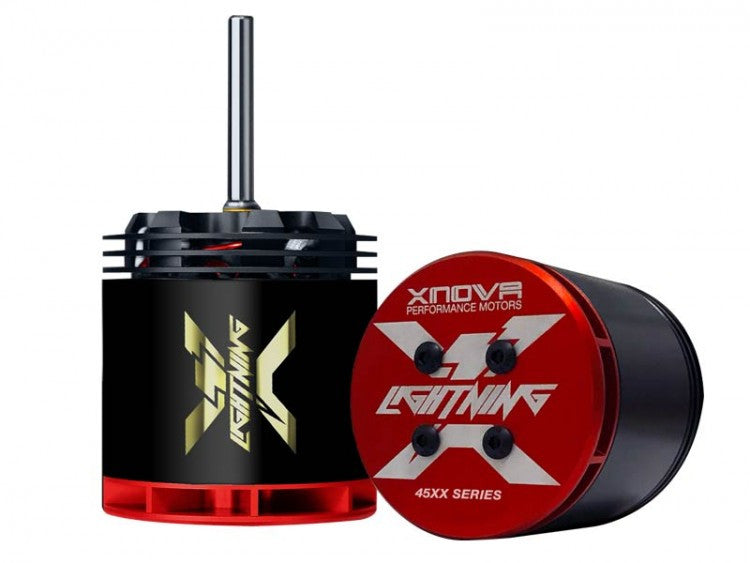

NEW! XNOVA LIGHTNING 4530-525KV SERIES (SHAFT A) - Kraken/ Raw 700/ ILGoblin Pro/Raw

NEW! XNOVA LIGHTNING 4530-525KV SERIES (SHAFT A) - Kraken/ Raw 700/ ILGoblin Pro/Raw

Regular price $683.99 CAD
Regular price Sale price $683.99 CAD
0% OFF Sold out
Shipping calculated at checkout.
View full details

Xnova Lightning 4530 Series - The Ultimate in Motor Performance

The Xnova team has poured countless hours into testing and refining their highly acclaimed 4530 series motor. The result is an enhanced, high-performance motor that offers superior efficiency and consistent power delivery throughout your flight, ensuring a cooler-running motor with outstanding reliability. The Xnova Lightning series stands as the pinnacle of motor technology for today's radio-controlled helicopters.

Specifically designed for extreme 3D flying in helicopters with 690-770mm blades, the Xnova Lightning 4530 motor delivers exceptional power-to-weight ratio—crucial for high-performance flying. It is ideal for 12S setups but can also be used with configurations ranging from 10S to 14S, depending on the KV rating.

Key Features:

  • Enhanced Efficiency: Improved stator laminations and an integrated cooling system help maintain lower operating temperatures, enabling sustained power during high-stress flights.
  • High Power Output: Hand-wound, thick YY single-strand copper wires (1.5mm thickness) are used, offering superior heat resistance (up to 300°C).
  • Durability: High-performance neodymium magnets are used, withstanding temperatures up to 180°C.
  • Optimized for 3D Flight: Designed to deliver maximum power-to-weight ratio, making it the perfect choice for extreme 3D flying.

Xnova LIGHTNING 4530 Specifications (with Thick Wire)

  • Motor Type: Brushless High-Performance Outrunner
  • Recommended for: 690-770mm blade helicopters
  • Designed for: Extreme 3D flying
  • Voltage Range: Suitable for 10S to 14S setups (depending on KV rating)

Motor Specifications:

  • Slots & Poles: 12n10p
  • Winding Type: 4+5 YY with 1.5mm thick wire
  • RPM/V: 525

Voltage & Current:

Voltage (V) 10 20 30 40
Current (Io) (A) 1.4 2 2.8 3.5
Resistance (Rm) (mΩ) 12 12 12 12

Physical Dimensions:

  • Weight (without connector): 535g
  • Body Length (no shaft): 60.5 mm
  • Diameter: 55.7 mm
  • Shaft Length: 38 mm (main), 27 mm (alternate)
  • Shaft Diameter: 6 mm | 8 mm | 10 mm
  • Mounting Holes (CTC Distance): 30 mm
  • Mounting Screw Size: M4 x 0.7

Performance Data:

Max Effective Current (A) 34.16 57.74 83.67 108.01
Max Effective Efficiency (%) 91.80 93.07 93.31 93.52
  • Kt (Nm/A): 0.0199
  • Km (Nm/√W): 0.1816

Power Ratings:

  • Max Continuous Power (W): 5600 W
  • Peak Continuous Power (W) (5 sec): 11000 W (for 2 seconds)
  • Max Continuous Current (A): 150 A

Conclusion:

The Xnova Lightning 4530 series motor is engineered to provide maximum power and efficiency, ensuring an exceptional flight experience. With its advanced cooling system, high-quality components, and precision engineering, this motor is built to withstand the toughest 3D maneuvers while maintaining optimal performance and low temperatures.
