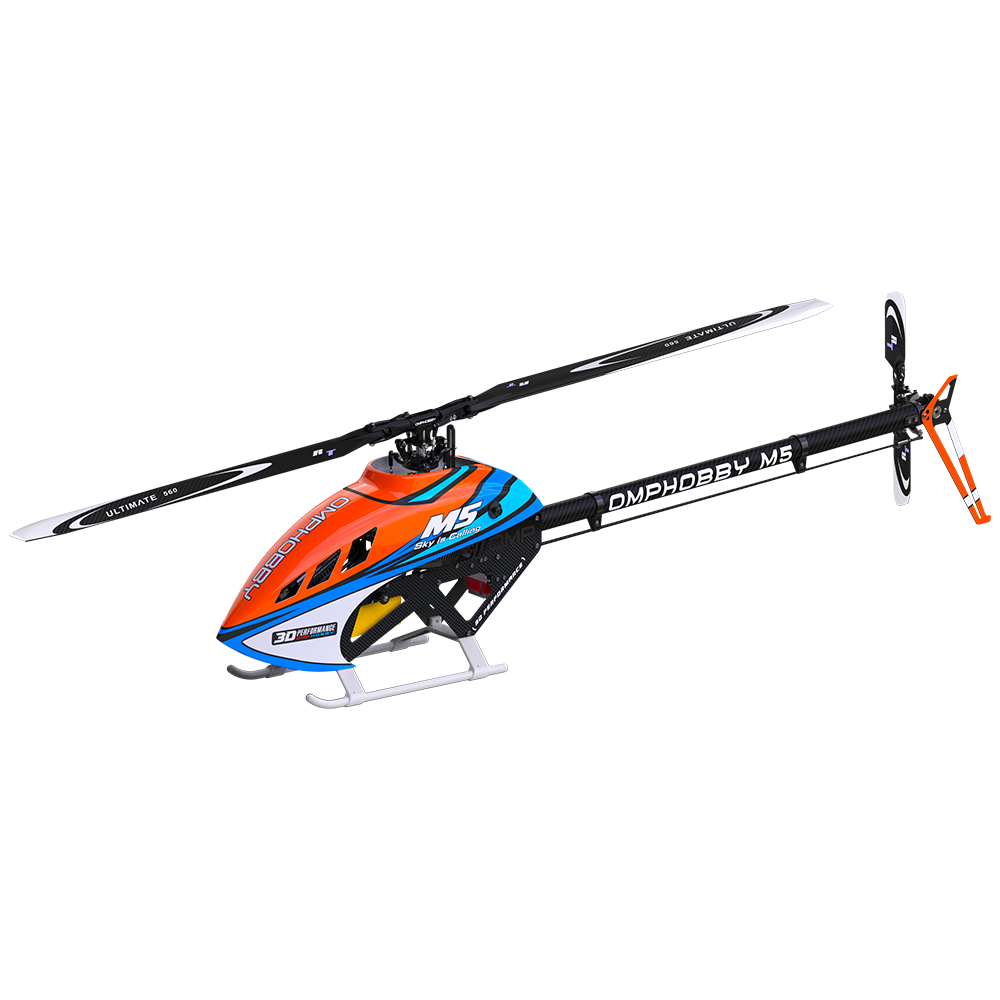

OMPHobby M5 Helicopter (no blades) - Orange

OMPHobby M5 Helicopter Kit - Orange

Built for everything from low RPM cruising and scale flying to aggressive 3D, the OMPHobby M5 is designed to be a versatile and adaptable airframe. Sharing over 90% of its parts with the larger M6, the M5 offers a strong, efficient, and easy-to-service platform for pilots looking for serious performance in a 550–580mm class helicopter.

Introduction

The M5 is designed for up to 580mm main rotor blades and works with 6S to 8S power systems. It combines the best attributes of the OMPHobby M4 and M7 into one clean and attractive package.

The airframe features an elegant open-frame layout, a sturdy main plate, and a compact servo rack design for easy maintenance and clean wiring. The layered carbon frame is extremely stiff, with beautifully chamfered lower carbon side panels for a premium finish.

The M5 is designed around modern 15mm mini servos, while the M6 is designed for 20mm standard servos. If desired, the M5 can be crossgraded to 20mm servos using compatible M6 parts.

Integrated wiring guides throughout the frame make routing your electronics clean and simple.

M7-Inspired Rotor & Tail Design

The main rotor system is directly derived from the OMPHobby M7 rotor design. Long control throws, integrated and retained rotor blade washers, durable 5mm ball joints, and two damping options are all part of the large-diameter rotor head mounted on a 12mm main shaft.

Together, these features provide excellent precision, stability, and control authority, helping the M5 feel rock solid while remaining highly agile in the air.

For tail control, the M5 and M6 inherit the same style of one-piece tail rotor housing, slop-free bell crank mechanism, and robust tail rotor design used on the M7. The system is downsized for the lightweight 28mm carbon fiber tail boom while retaining a 6mm tail shaft and 5mm tail spindle shaft.

Power System & Drivetrain

With pinion options ranging from 11T to 15T and durable 15mm tall FEA-optimized main gears, the M5 gives pilots a wide range of gearing choices to fine-tune their setup.

The motor mount sits on rails directly on the main plate, improving rigidity and helping maintain parallel shaft alignment for a clean and consistent gear mesh.

The airframe accepts a wide range of battery configurations inside a spacious 58 x 70 x 300mm battery bay. Since the M5 and M6 share the same basic frame structure, M5 battery trays fit the M6 without modification, and M6 battery trays also fit the M5.

Features

• M5 blade size: 550mm - 580mm main blades, 93mm - 96mm tail blades
• M6 blade size: 600mm - 610mm main blades, 96mm - 106mm tail blades
• 90%+ shared parts between M5 and M6
• Four canopy options: Cosmic Orange, Solar Yellow, Aurora Green, and Nebula Pink
• Built and tested for hard 3D flying
• 12mm main rotor shaft and 6mm tail rotor shaft
• 15mm cyclic servos and 15mm tail servo layout for M5
• 20mm cyclic servos and 20mm tail servo layout for M6
• M5 can be crossgraded to 20mm servos if desired
• Light airframe weights: 1405g for M5 and 1505g for M6

Frame Features

• Battery rails integrated into the side frame panel stack
• Low parts-count airframe with lightweight aluminum main plate
• High-end chamfered carbon fiber lower frames
• Quick-release canopy and battery tray latches derived from the M7
• Integrated wiring paths throughout the airframe
• Central main plate provides rigidity and easy maintenance access
• Motor carrier rails make gear mesh setup effortless
• Modular servo rack makes servo installation and wiring easier
• Auxiliary plate under ESC plate, with receiver plate available in the rear
• Pre-drilled ESC mounting holes for major ESC brands
• Triple carbon plate reinforced tail boom mounting for excellent rigidity
• Damped flight controller platform known from the M7

Drivetrain Features

• FEA-optimized main gear structure reduces bending under load by 25%
• Supports motor shaft lengths from 15mm to 60mm, 6mm diameter
• 11T, 12T, 13T, 14T, and 15T pinions available
• 15mm tall gears provide quiet, efficient, and durable power transfer
• M5 uses a 115T main gear with ratios: 10.455, 9.583, 8.846, 8.214, 7.667
• M6 uses a 121T main gear with ratios: 11.000, 10.083, 9.307, 8.643, 8.067

Tail Features

• Downscaled M7-style tail rotor with 6mm tail rotor shaft and 5mm spindle shaft
• 28mm carbon fiber tail boom
• Single-piece aluminum tail housing
• Best-in-class tail performance using the proven M7 tail rotor design concept
• Dynamic weights on the tail rotor reduce servo torque load in flight
• Tail rotor transmission ratio: 95/20 = 4.75:1

Main Rotor Features

• Long-throw main rotor design provides exceptional control authority
• 12mm main rotor shaft and 8mm spindle shaft
• Turnbuckles on every linkage
• 5mm ball joints for excellent safety and longevity
• Two damper options included: POM and 90° Shore durometer rubber rings
• Keyed, retained, and integrated rotor blade washers enhance lead-lag damping, reduce vibrations, and simplify blade changes
