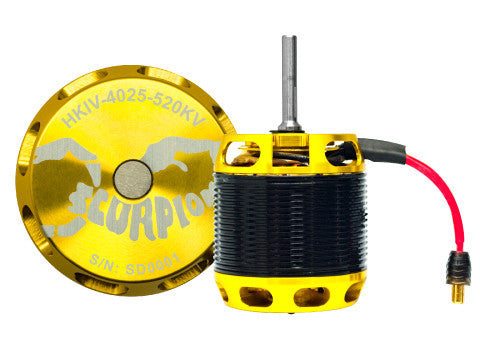

Scorpion HKIV 4025 520KV Brushless Motor - Raw 580/Kraken 580
Scorpion HKIV 4025 520KV Brushless Motor - Raw 580/Kraken 580
Couldn't load pickup availability
The HKIII-4025 series motors have proven themselves to be extremely successful in heli community and has become the most popular motor used in 500~600 class helicopters world-wide (12S setup).
And now we are pleased to announce the release of the fourth generation HKIV-4025 series motors. With the same motor design and materials of HKII-45 series, and single strand winding technique on this size of motor, it has the better efficiency and power conversion than HKIII-40 series, with an entirely new EM field design, while improving the compatibility with various speed controllers available on the market. This new design motor will deliver even more power to your helicopter, with increased efficiency!
Specifications
|
Stator Diameter |
40 mm (1.57 in) |
|
Stator Thickness |
25 mm (0.98 in) |
|
No. of Stator Arms |
12 |
|
Magnet Poles |
10 |
|
Motor Wind |
6+7 Turn Delta |
|
Motor Wire |
1-Strand 1.2 mm |
|
Motor Kv |
520KV RPM/Volt |
|
No-Load Current (IO/10v) |
1.81 Amps |
|
Motor Resistance (RM) |
0.022 Ohms |
|
Max Continuous Current |
65 Amp |
|
Max Continuous Power |
2886 Watt |
|
Weight |
347 Grams (10.58 oz) |
|
Outside Diameter |
49.50 mm (1.95 in) |
|
Shaft Diameter |
5.98 mm (0.24 in) |
|
Body Length |
54 mm (2.13 in) |
|
Overall Shaft Length |
84.6 mm (3.33 in) |
|
Max Lipo Cell |
12s |
|
Peak Continuous Current |
90 Amps (5 seconds) |
|
Peak Continuous Power |
3996 Watts (5 seconds) |
|
Motor Timing |
5deg |
|
Drive Frequency |
8kHz |
Included in the Box
- 1 x Scorpion HKIV-4025-520KV Motor
- 3 x Female Connectors
- 3 x Connector Cover
- 4 x M3 Screws
- 4 x M4 Screws
Weight including packaging
- 754g
