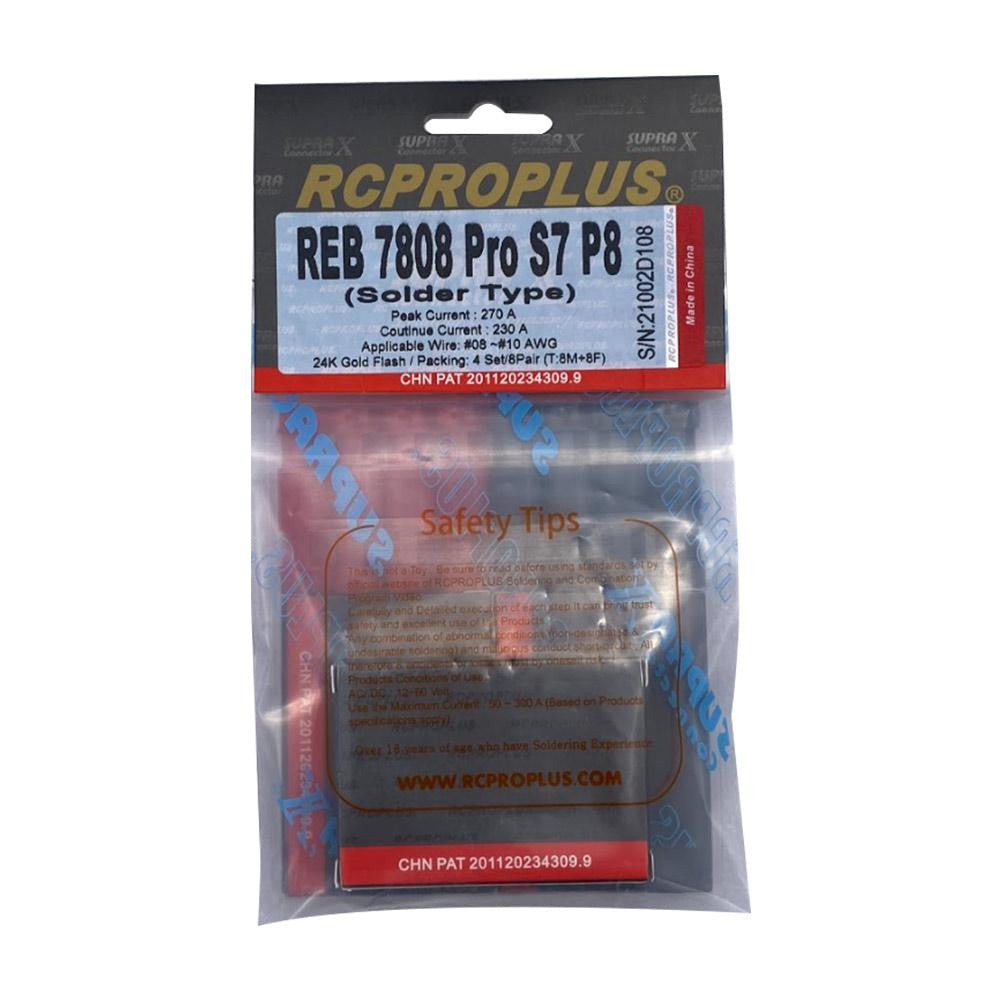

Supra X Pro S7 Battery Connectors 4Set 8-10AWG REB7808PROS7P8
Featuring a unique patented banana plug lock design, these Pro-S7 connectors securely lock in place handling quick movements and vibrations, commonly found during extreme 3D flights, without coming apart. The stronger jacket and snaps extends the advantages of the previous generation of Supra X Connectors and makes them better.
These connectors are a great solution for your high current and high voltage demands offering a large, low resistance surface patch for efficient power transfer. The 24K Gold Plated bullet plugs feature a recessed wire cavity and solder windows making assembly hassle free, while the sheath uses high temperature capable, impact-resistant plastic imported from Japan.
Features
- Patented lock design eliminates separation
- Use with batteries, speed controllers and chargers
- Recessed plug cavity and solder windows
- Large, low resistance contact patch
- Hassle free assembly
Specification | Unit / Data |
---|---|
Products No. | REB7808 Pro S7 P8 |
Applicable Wire | 08~10AWG |
Peak Current | 260A |
Continue Current | 220A |
Max.Volt Rating D/AC | 100V |
Contact resistance | 0.38m Ohm |
Temp.Rating | |
Dimension | |
Weight(g) | |
Raw Material | C36 Series |
Standrad Packing | P8 (4 Set 8Pair) |
