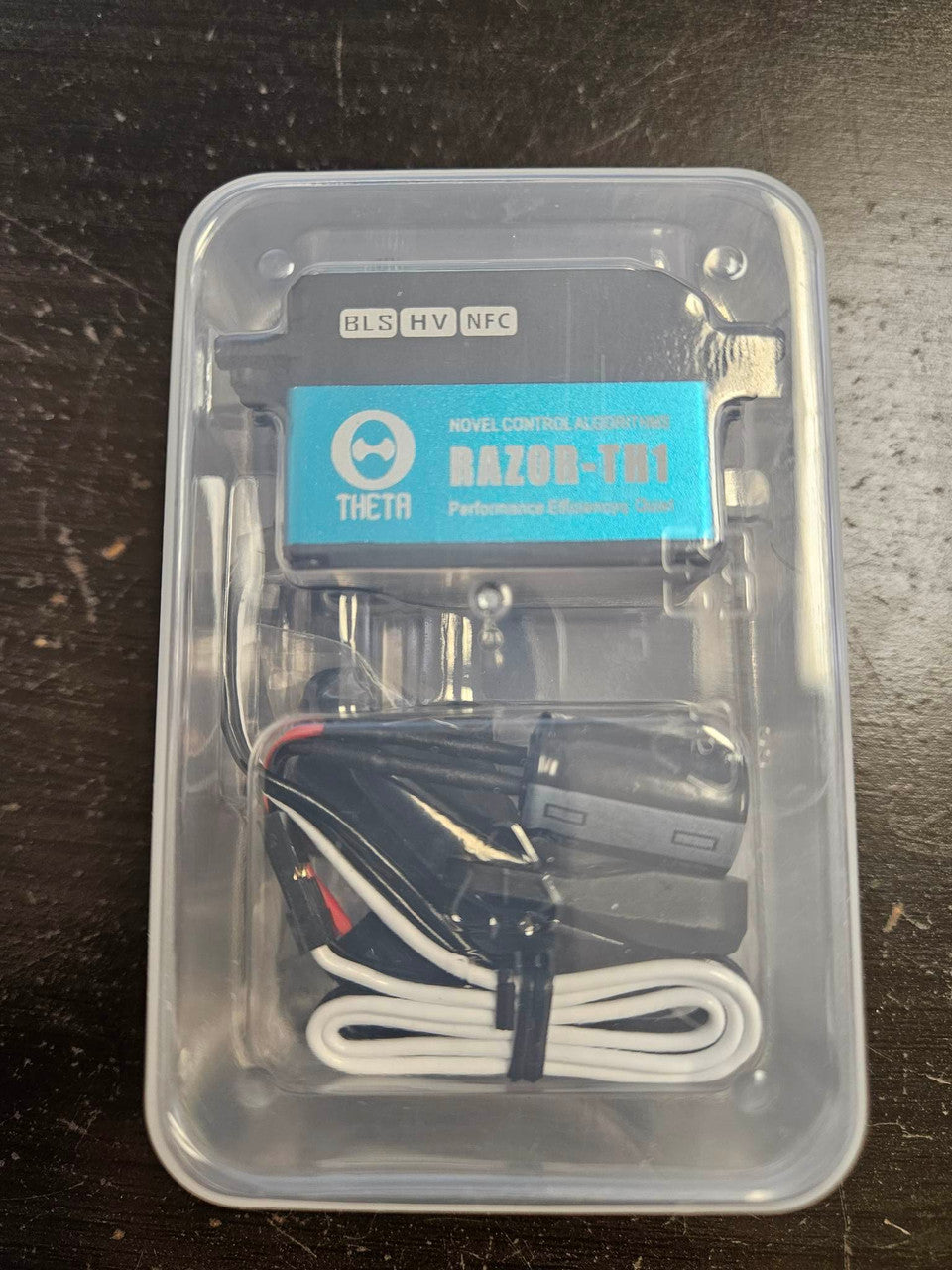

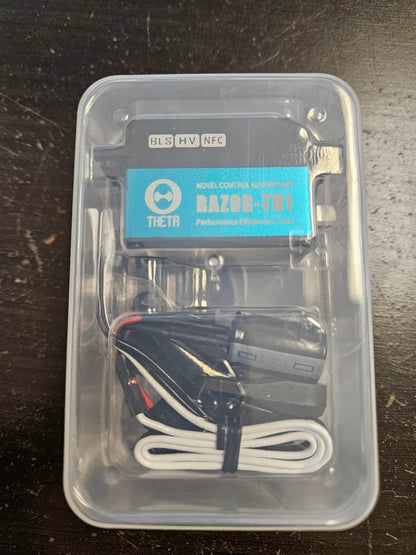

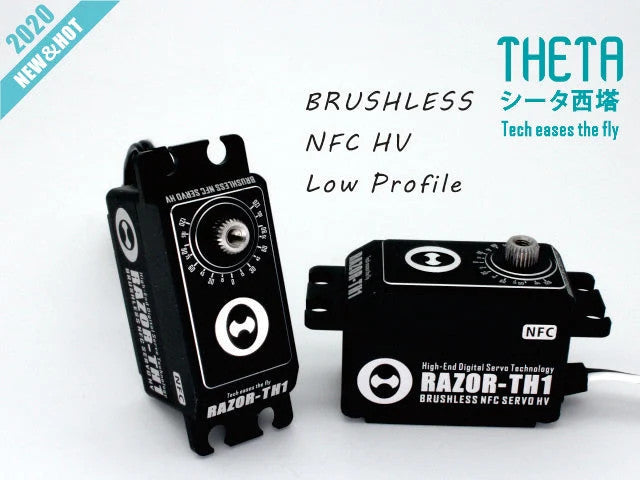

THETA RAZOR-TH1 (BLUE) NFC HV Low Profile Brushless Tail Servo

The Razor TH1 Theta Servo is a low profile size brushless helicopter tail rotor servo that is capable of handling high voltage of up to 8.4V. The high torque brushless servo delivers incredible power and can be used for RC helicopters. Featuring NFC technology, the Razor series of servos can tune and optimize performance through an Android device. Settings such as servo centering (servo offset), refresh rate, acceleration, and PID control loop are all available for tuning.

Features:

• High voltage compatibility
• Brushless motor
• Metal gears
• Precision centering
• NFC Wireless tuning via Android devices
• 25T Output shaft
• All black cables
• Neutral position: 760uS | 1520uS - Selectable

• Operating Voltage: 5V - 8.4V
• Torque:
• 3A:
• 6V: 291 oz/in (21kg-cm)
• 7.4V: 319 oz/in (23kg-cm)
• 8.4V: 333 oz/in (24kg-cm)
• 5A:
• 6V: 360 oz/in (26kg-cm)
• 7.4V: 388 oz/in (28kg-cm)
• 8.4V: 416 oz/in (30kg-cm)
• Speed:
• 3A:
• 6V: 0.09 sec/60
• 7.4V: 0.08 sec/60
• 8.4V: 0.07 sec/60
• 5A:
• 6V: 0.081 sec/60
• 7.4V: 0.072 sec/60
• 8.4V: 0.063 sec/60
• Weight: 60g (2.11 Oz)
• Motor Type: Brushless
• Spline: 25T
