TRON 5.5 HELICOPTER KIT

DETAILS:

• Wide battery compartment with quick lock and release system.
• Light, yet very stiff and robust.
• Dry weight= 1315 grams without blades and electronics.
• Mini or full-size tail servo option.
• Motor mounting features a bearing block supported pinion, reducing overall wear on the power system and drive train.
• Compatible with a wide range of motor sizes. 3225, 4020, or 4025 series fit with easy. From 1000KV-1350KV for 6s (5mm shaft and 6mm shaft diameter ) 14T/5mm included.
• Octa boom design with oval side shapes, no boom supports needed.
• Capable to use a wide range of lipo batteries. 6,8,10 or even 12S. (6S-5000mAh to 5500mAh recommended).
• Perfectly thought-out servo layout in conjunction with the FBL system and ESC.
• Easy cable routing with various options to ensure a clean setup. Modern, sporty and functional design.
• High visibility canopy for perfect orientation in flight.
• Recommended main blade size 550-560mm. Tail blade size 86-93mm.
• Sustainably produced.

DESCRIPTION:

• 14T/5mm shaft diameter motor pinion included in kit.
• 19T taildrive pinion included in kit.
• Precise FBL rotorhead.
• 2mm carbon frame.
• No boom support.
• 1* State of the art batterie slide tray with pull and push lock system included in the kit.
• 1* Main blade holder caddy included in the kit.
• CNC 135T Mod 0.7 main gear.
• Helicopter Kit, without blades and electronics.

THE TRON 5.5 FRAME LAYOUT AND SET UP PRODUCT RECOMMENDATIONS.

The Tron 5.5 frame design allows for simplicity during assembly and maintenance. The servos, motor, ESC, and flybarless gyro are all easily accessible while maintaining incredible detail and elegance.

Main drive recommendations:

Regardless of motor and power system choice, the Tron 5.5 will be able to handle a wide variety of equipment. From 6S up to 12S!

* Recommendation for the Tron 5.5 if you use KONTRONIK equipment.

• KOLIBRI-140-LV.
• PYRO 650-103-1030kv 5mm or 6mm shaft.
• PYRO 650L-103-1030kv 5mm or 6mm shaft.

* Recommendation for the Tron 5.5 if you use SCORPION equipment.

• TRIBUNUS II 06-120A SBEC ESC.

• TRIBUNUS 12-130A ESC SBEC ESC.

• SCORPION HK-IV-1100 kv 5mm or 6mm shaft.
• SCORPION HK-IV 1060 kv 5mm or 6mm shaft.
• SCORPION HK-IV 1320 kv 5mm or 6mm shaft.

* Recommendation for the Tron 5.5 if you use XNOVA and YGE equipment.

• YGE 135 LVT. ESC.
• YGE AUREUS 135 HVT.ESC.
• HOBBYWING PLATINUM PRO 120A V4.
• HOBBYWING PLATINUM PRO 130A V4.

• XNOVA 4020-1200 kv LIGHTING OR PERFORMANCE series 5mm or 6mm shaft.
• XNOVA 4020-1350 kv LIGHTING 5mm or 6mm shaft.
• XNOVA 4025-1120 kv LIGHTING 5mm or 6mm shaft.

Servo recommendation for the Tron 5.5:

We have done countless test flights together with some of the world's finest and hardest flying 3D pilots. The conclusion we came up with is that midi servos have satisfied us more than enough in the Tron 5.5. However, for the tail, you have the option to go either full or midi size.

Main and tail drive gear ratios:

Whatever head speed you want to fly, 3D, sport, cruising at low rpm or orientation practicing. We have the right transmission gear available. No matter you go for 6S or 12S. We got you covered.

Motor mount, main and tail drive gear assemble:

The motor mount provides you with a solid pinion support, where the shaft is not in direct contact with your support bearing.

The main gear and the tail pulley are fully CNC machine-made and run very quiet with very low wear.

FULL CNC PRECISIONS ROTORHEAD.

The state of the art rotorhead is made out of high grade aluminum. It provides you with a ultra precise feeling at any headspeed.

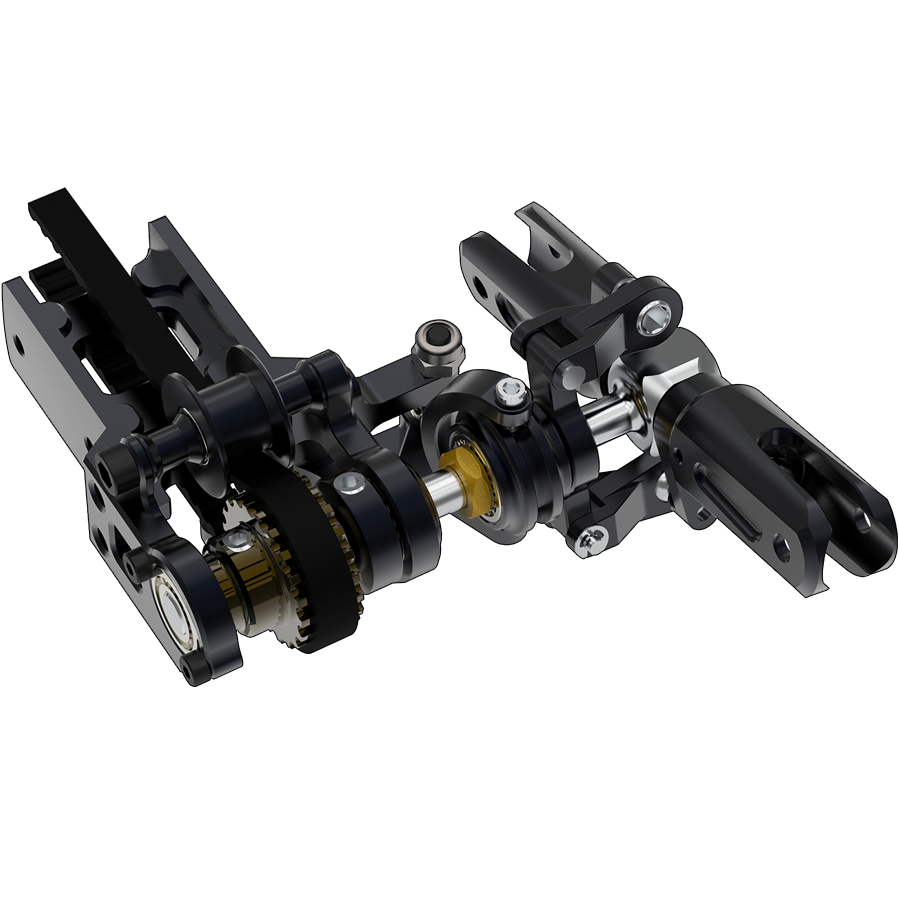

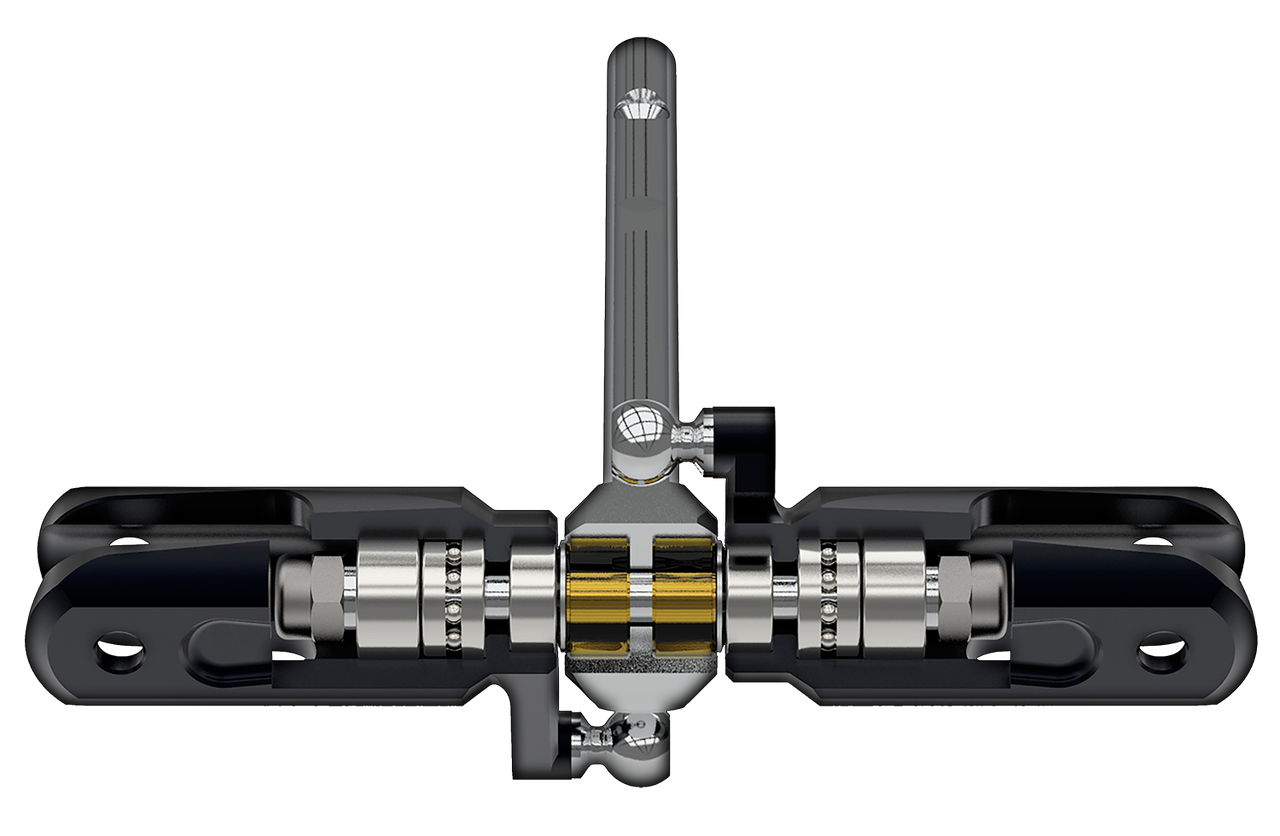

FULL CNC PRECISIONS TAILROTOR SYSTEM

With an incredibly strong and durable tail drive unit, the Tron 5.5 provides an ultimate feel during any maneuver, while featuring unique design elements.

3 Different tail pulleys are available to match your need for any headspeed and any kind of flying style.

Art transformed to function. The Tron 5.5 tail drive assembly.

• Made out of high-quality grade aluminum.
• Unique tail case design.
• Extreme solid and vibration resistance.
• 3 different gear ratios 18,19,20 teeth.

Tail boom clamps.

• Octa type with oval side shapes for maximum strength.
• Very accurate fit.
• Light but rigid.

Smoothness in every situation. The Tron 5.5 tail dampening system.

• Noise reduction in every maneuver.
• Less sensitive to vibrations.
• Slop free
• High precision
• Very durable

Beauty and the beast. The Tron 5.5 complete tail boom assembly.

• Octa shape boom with oval side shape for maximum strength.
• Made out of high-quality grade aluminum.
• No boom support needed.

STYLISH AND UNIQUE CANOPY.

The tron 5.5 canopy has incredible visibility and allows perfect orientation in flight.

Available in 3 different colours.
