DETAILS:
- Wide battery compartment with quick lock and release system.
- Light, yet very stiff and robust.
- Innovative FBL tray. (adjustable dampening hardness)
- Dry weight= (2190) grams without blades and electronics.
- 12mm hollow main shaft.
- 10mm feathering shaft.
- Main gear =155 T mod. 1 / tail drive front pulley = 127 T and 25 T on tail assembly.

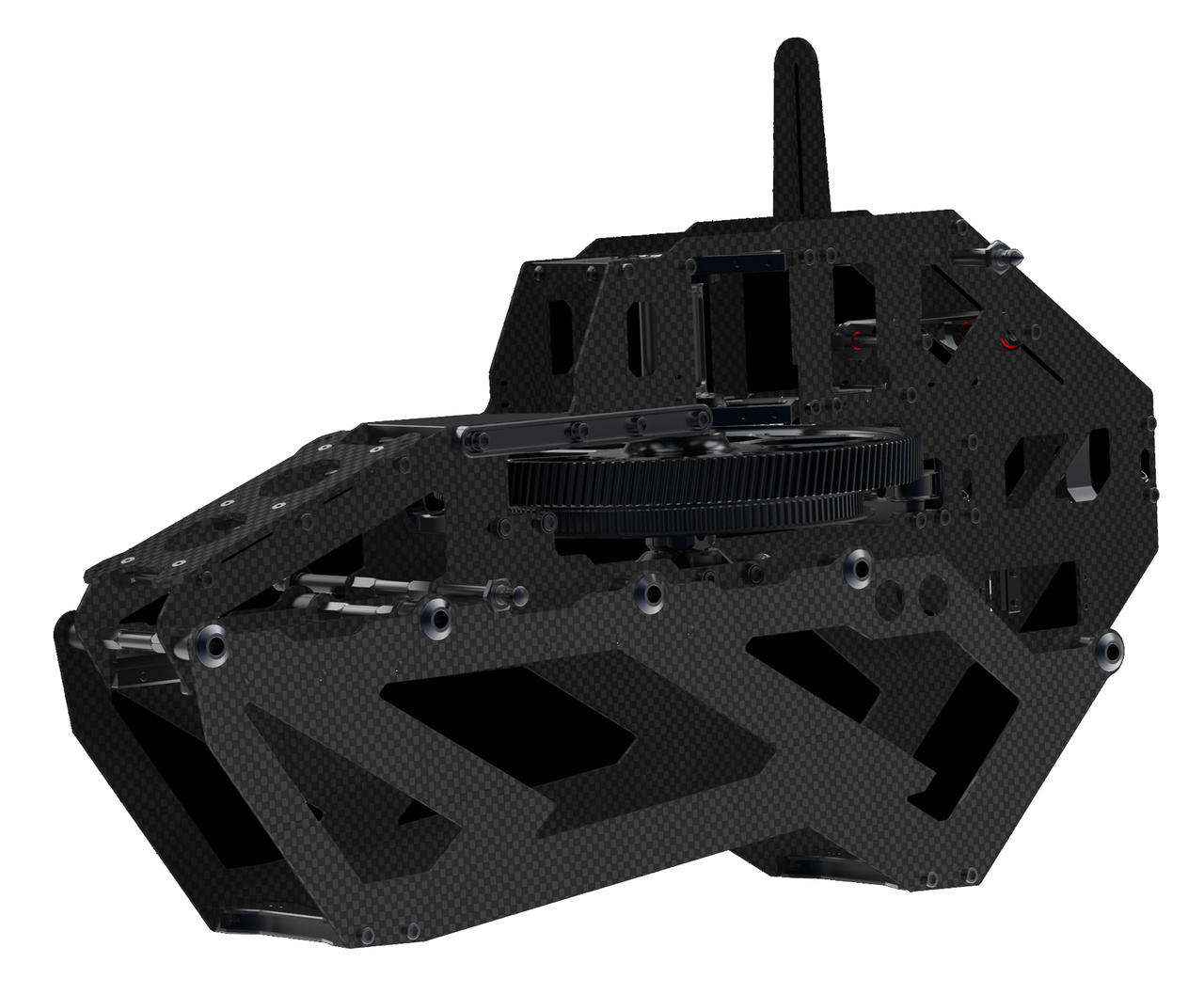

- Real full carbon mainframe.
- Motor mounting features a bearing block supported pinion, reducing overall wear on the power system and drive train.
- Compatible with a wide range of motor sizes, 4030, 4035, 4525, 4530, 4535 (6mm shaft required min. length = 20mm) 520 - 560kv.
- 16 T motor pinion included in kit. (6mm bore diameter)
- Octa boom design with oval side shapes, no boom supports needed.
- Capable to use a wide range of lipo batteries. 6S - 14S . (12S - 5000mAh to 5500mAh recommended).
- Perfectly thought-out servo layout in conjunction with the FBL system and ESC.
- Easy cable routing with various options to ensure a clean setup. Modern, sporty and functional design.
- High visibility canopy for perfect orientation in flight.
- Recommended main blade size 685 - 720 mm. Tail blade size 95 - 115 mm.
- Sustainably produced.
Regardless of motor and power system choice, the Tron 7.0 will be able to handle a wide variety of equipment. From 6S up to 14S!
Motor recommendations: (motor is not included in the kit)
- Scorpion HKII-4525-520KV – ULTIMATE 6mm shaft. (min. 20mm length)
- Scorpion HKII-4530-540kv 6mm shaft. (min. 20mm length)
- Xnova 4525 XTS or Lightning 530kv 6mm shaft. (min 20mm length)
- Xnova 4530 XTS or Lightning 525KV 6mm shaft. (min 20mm length)
- Kontronik PYRO 750-560KV 6mm shaft. (min. 20mm length)
- Kontronik PYRO 700-560KV 6mm shaft. (min 20mm length)
- Tengu 4530HT / 550kV (12-14S) 6mm shaft. (min 20mm length)
Regardless of ESC and batterie choice, the Tron 7.0 will be able to handle a wide variety of equipment. From 6S up to 14S and 135A- 205A or more.
ESC recommendations: (ESC is not included in the kit)
- Scorpion Tribunus II 12-130A ESC SBEC /suitable for sport and 3D.
- Scorpion Tribunus II 14-200A ESC SBEC /suitable for 3D and hardcore 3D.
- HW Platinum Pro 130A HV /suitable for sport and 3D.
-
HW Platinum Pro 200A HV /suitable for 3D and hardcore 3D.
- YGE Aureus 135 /suitable for sport and 3D.
- YGE 205 HVT /suitable for 3D and hardcore 3D.
Tron 7.0 demo flight by Tron factory pilot - Tomas Erlich
