TRUERC BLAZE 5.8 UFL LONG (110cm) LHCP RED

TRUERC BLAZE 5.8 UFL LONG (110cm) LHCP RED

Regular price $24.99 CAD
Regular price $35.35 CAD Sale price $24.99 CAD
29% OFF Sold out
Shipping calculated at checkout.
View full details

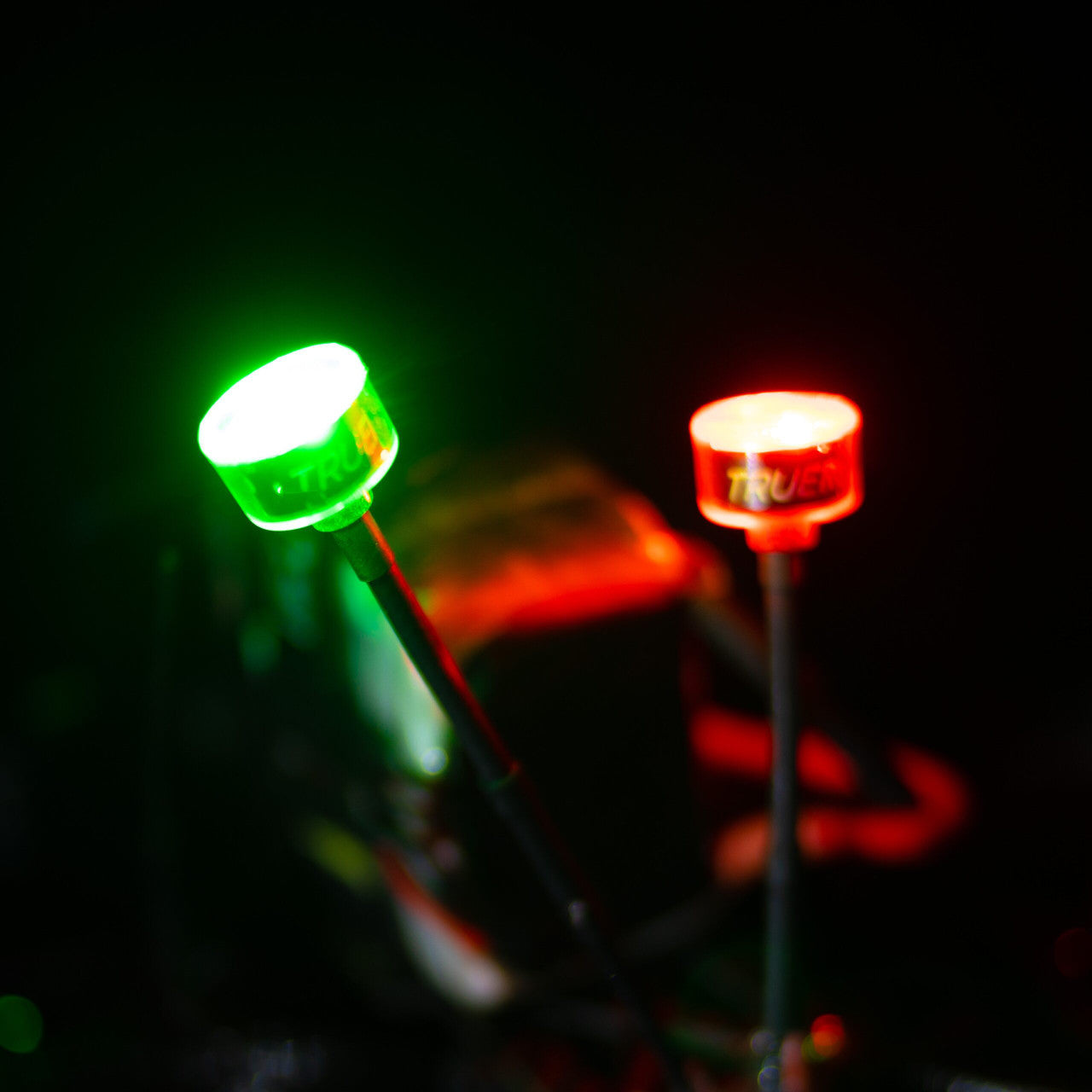

Featuring our latest high fidelity* circular polarized antenna design added of a CREE™ XQ-E high intensity LED, the BLAZE 5.8 is no ordinary antenna. It is a high performance CP omni doubling as a powerful LED light. Thanks to an advanced RF design and heat management, this antenna possibly outshines anything in both the 5.8GHz and visible spectrum.

FEATURES:

  • Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing.
  • CREE™ XQ-E high intensity LED.
  • Wider Bandwidth (5.4-6.3GHz).
  • *Pattern stay true even in harsh/sub-optimal installations.
  • Single wire 5V LED power hookup with micro connector.
  • Available in red, green, blue and white.
  • Available with True-SMA connector.
  • Available with high quality dji compatible MMCX.
  • Available with support tube and U.fl pigtail (vista).

SPECS:

  • Gain: 1.9dBic
  • Polarization: RHCP or LHCP
  • Cross-Polar Rejection: -15 to -30dB, (1.9%)
  • Bandwidth: 5.4GHz-6.3GHz
  • Radiation Efficiency: 99%
  • SWR:
  • Weight: 7.9 g
  • Dimensions(head): 16.5mm dia. X 10.7mm height.
  • Length: 80mm to 125mm.
  • Cable: Heavy-duty semi-rigid RG402 coax or custom RG316S.
  • Connector: True-SMA, MMCX90 or U.fl w/support tube (Vista)
  • Current draw: 100-110mA with included resistor.
  • Max current: 400mA.
  • Supply voltage: 5V with included resistor.
  • l Approx luminous flux @100mA: 20 to 50 Lumen depending on color.

INCLUDES:

  • 1x Antenna.
  • 12 or 18ohms resistor depending on color.
  • Micro power connector.
  • Heat shrink.

US. Pat. 10,804,618

Download manual

3D print a tpu cover to tint white LED the color you like.
