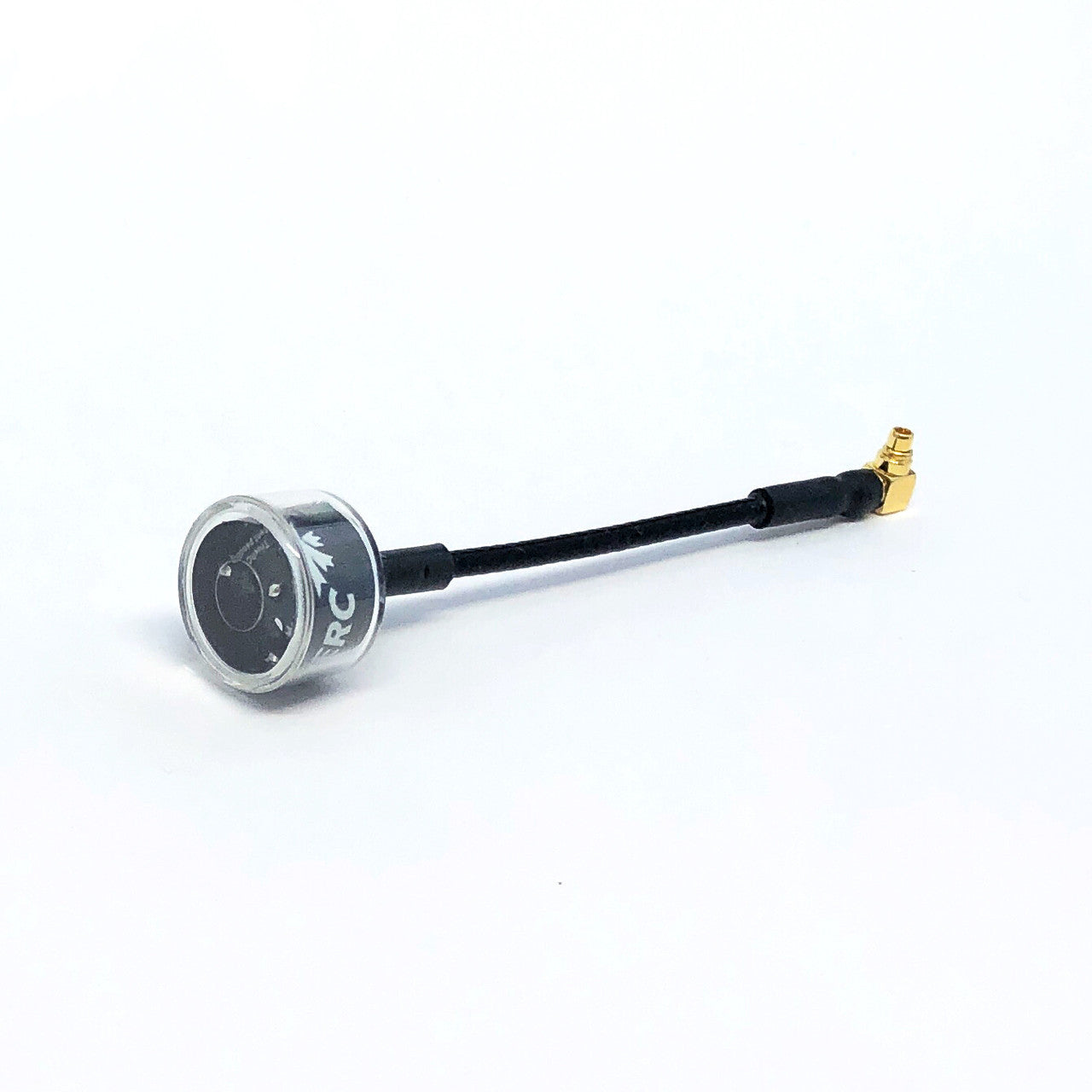

The OCP 5.8 is our new everyday omni antenna.
Proven design, great signal, durable and look amazing.
Available in all popular connector configurations.
FEATURES
- Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
- Clear indication of polarization direction
- Excellent axial ratio and efficiency
- Flexible coax for ease of installation
- Longer shank quality mmcx suitable for DJI air unit
SPECS:
- Gain: 1.6dBic
- Cross-Polar Rejection: -10 to -20dB, (3.2%)
-
Bandwidth: 5.6GHz-6.0GHz
- Radiation Efficiency: 98%
- SWR:
- Weight: x.xg
- Dimensions(head): 16.5mm dia. X 10.7mm height.
- Length: 80mm
- Cable: TrueRC RG316 coax.
- Connector: 90deg. MMCX male.
Patent pending.
