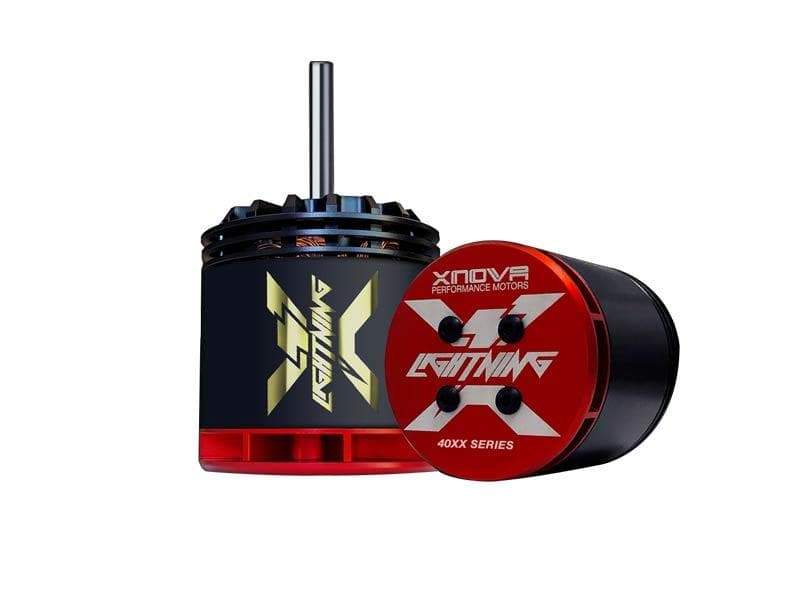

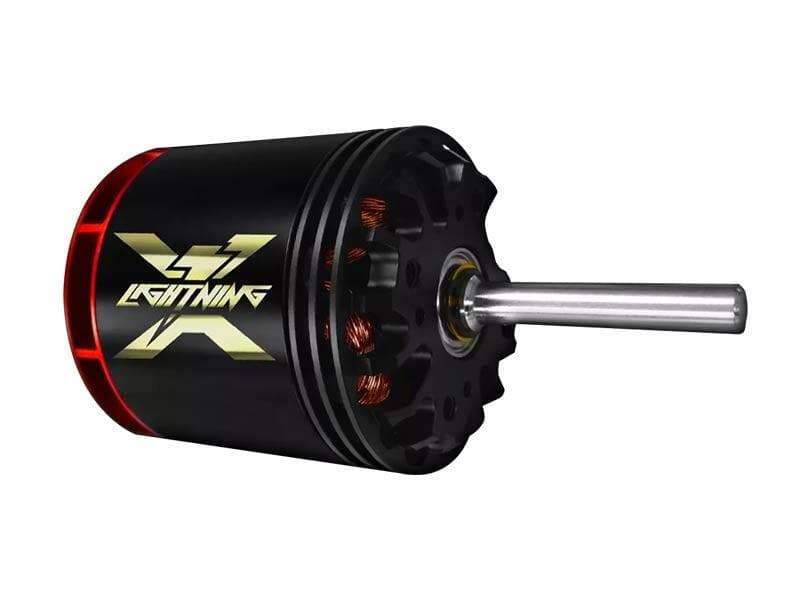

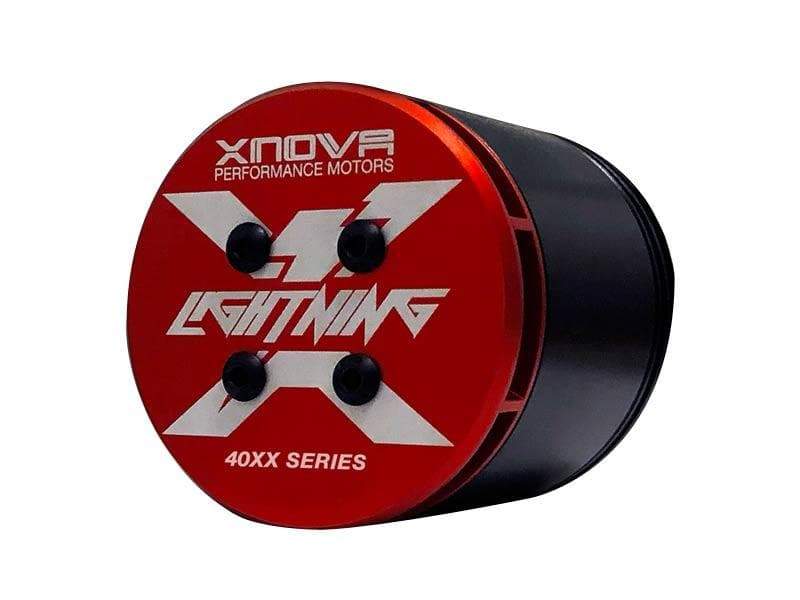

Xnova Lightning 4030 - 1000KV motor (shaft A) - Goblin Piuma

1. Improved higher efficiency with thinner stator lamination, resulting in lower temperature.
2. Optimized and unique design, hand wound to perfection
3. Smooth running, low cogging torque.
4. New type of higher degree magnets.

5. All other features same as performance series.

Motor Specifications

• Slots & Poles: 12n10p
• Winding Type: 4+5 YY with 1.5mm thick wire
• RPM/V: 525

Voltage & Current

Voltage (V)	10	20	30	40
Current (Io) (A)	1.4	2	2.8	3.5

• Resistance (Rm) (mΩ): 12 | 12 | 12 | 12

Physical Dimensions

• Weight (without connector): 535 g
• Body Length (no shaft): 60.5 mm
• Diameter: 55.7 mm
• Shaft Length:
  • 38 mm (Details Pictures)
  • 27 mm
• Shaft Diameter:
  • 6 mm | 8 mm | 10 mm
• Mounting Holes (CTC Distance): 30 mm
• Mounting Screw Size: M4 x 0.7

Performance Data

Max Effective Current (A)	34.16	57.74	83.67	108.01
Max Effective Efficiency (%)	91.80	93.07	93.31	93.52

• Kt (Nm/A): 0.0199
• Km (Nm/√W): 0.1816

Power Ratings

• Max Continuous Power (W): 5600
• Peak Continuous Power (W) (5 sec): 11000 (2 sec)
• Max Continuous Current (A): 150
