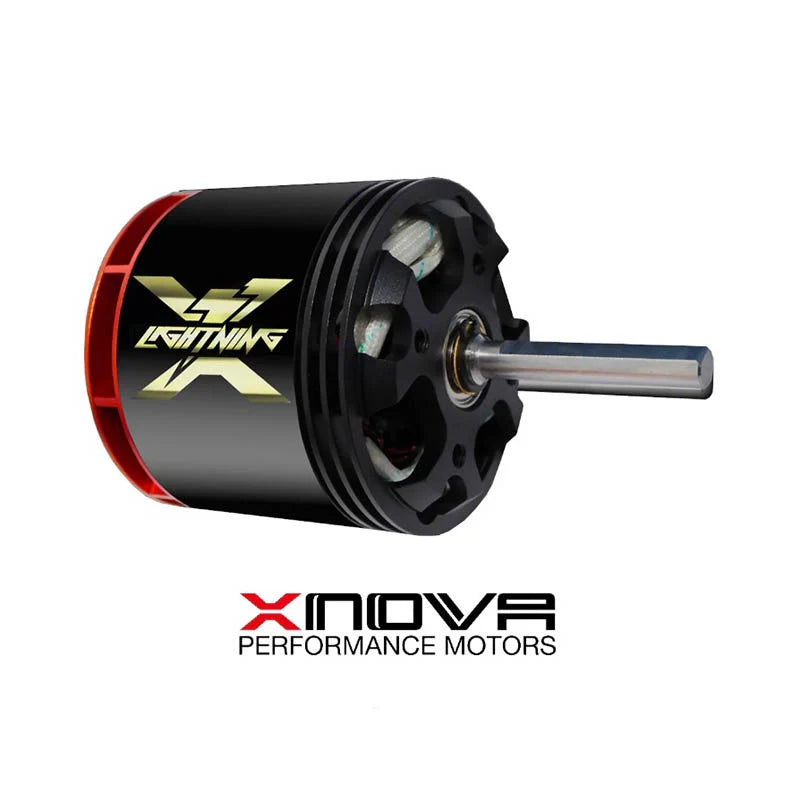

Xnova Lightning 4530-565KV Brushless Motor – Shaft A

New for 2026, the Xnova Lightning 4530-565KV Motor is a high-performance brushless outrunner designed for pilots seeking extreme 3D performance, higher head speeds, and strong power delivery in 700-class RC helicopters.

Optimized for 12S power systems, the higher 565KV rating provides additional RPM headroom for fast cyclic response, strong collective performance, and demanding high-head-speed setups.

Part of Xnova’s V3 Lightning series, the 4530-565KV features thinner stator laminations, improved cooling, thicker hand-wound copper wire, and high-temperature neodymium magnets. These refinements help deliver strong, consistent power while improving efficiency and thermal performance during aggressive flying.

Key Features

• Designed for extreme 3D flying and high-head-speed 700-class helicopters
• Optimized for 12S LiPo power systems
• 565KV winding provides increased RPM potential for aggressive setups
• Thinner stator laminations improve efficiency and reduce heat
• Integrated cooling design supports lower operating temperatures
• Thick, hand-wound single-strand copper wire rated up to 300°C
• High-performance neodymium magnets rated up to 180°C
• Consistent power delivery throughout demanding flights

Specifications

• Motor Type: Brushless outrunner
• Motor Series: Xnova Lightning 4530 V3
• KV Rating: 565KV
• Recommended Voltage: 12S LiPo
• Slots / Poles: 12N10P
• Winding: Thick-wire, hand-wound
• Internal Resistance: 7 mΩ
• Maximum Continuous Current: 140A
• Maximum Continuous Power: 5,600W
• Peak Power: 11,000W for 2 seconds
• Maximum Efficiency: Up to 94.1%
• Motor Diameter: 55.7mm
• Body Length: 61mm, excluding shaft
• Weight: 556g, excluding connectors
• Mounting Pattern: 4 × 30mm
• Mounting Screws: M4

Please verify the shaft configuration and pinion requirements for your helicopter before ordering.

Maximum RPM. Maximum Response. Extreme 3D Performance.

For pilots who find the 4530-525KV or 4530-550KV too conservative for their preferred head speed, the new 4530-565KV provides the extra RPM potential needed for uncompromising 3D performance. Pair it with a suitable high-current HV ESC, battery system, gearing, and drivetrain for a powerful 700-class setup.

Xnova Lightning 4530-565KV Specifications

Performance Data

Performance values are based on Xnova laboratory test data. Actual results may vary depending on gearing, ESC settings, cooling, battery condition, head speed, and flying style.
