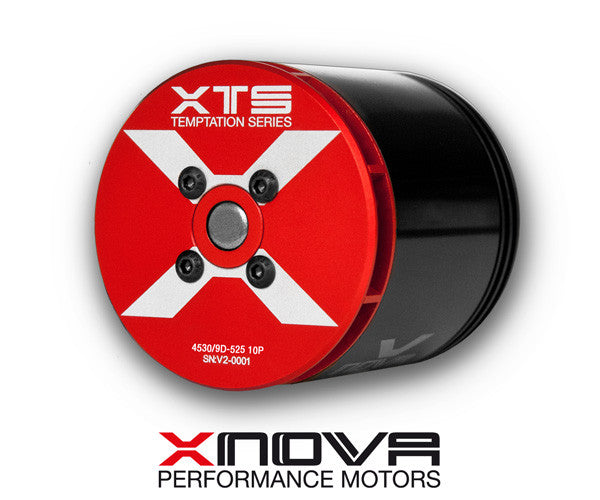

Xnova XTS 4530-525 KV (shaft A) - Goblin Raw/Kraken 700/ILGoblin

The Xnova XTS 4530-525KV – Shaft A is a high-performance 12S brushless outrunner motor designed for powerful 700-class RC helicopters and extreme 3D flying.

The XTS is the previous-generation platform that the newer Xnova Lightning 4530 series was developed from. It delivers very similar core performance and specifications to the Lightning version, but uses the earlier XTS construction and carries a little more weight. For pilots who want proven Xnova 4530 performance without necessarily needing the latest Lightning-series refinements, the XTS remains an excellent choice.

The 525KV winding is especially well suited to 12S setups, providing strong torque, high power output and excellent efficiency for demanding 700-class applications.

Why Choose the XTS Instead of the Lightning Version?

The newer Lightning 4530 was developed from the established XTS platform and adds refinements such as thinner stator laminations, improved cooling, upgraded magnets and revised winding construction. However, the XTS still offers the same proven 4530 motor size, 525KV speed range and very strong power capability.

• Proven Xnova 4530 platform
• Very similar core performance to the newer Lightning 4530-525KV
• Excellent option when maximum weight savings are not essential
• Strong torque and power for aggressive 700-class flying
• Ideal for 12S power systems
• Often a more economical alternative to the Lightning version

Shaft A Compatibility

This motor is supplied with Xnova Shaft A, featuring a 6mm diameter and approximately 38mm exposed shaft length. Shaft A is commonly used on many 700-class helicopters and is suitable for a wide range of machines where the motor mount, shaft length and pinion position are compatible.

Common applications include:

• SAB Goblin Kraken 700
• SAB Goblin RAW 700
• SAB ilGoblin 700 RAW
• SAB ilGoblin 700 PRO
• SAB ilGoblin 700 KSE
• SAB ilGoblin 700 Piuma
• SAB Goblin Competizione Electric
• Goosky RS7 / RS7 Ultra
• OMPHobby M7 / M7R
• Other compatible 700-class helicopters using a 6mm motor shaft and suitable motor mounting dimensions

Important: Compatibility can vary depending on motor mount design, pinion position and required shaft length. Please confirm the dimensions of your helicopter before installation.

Important: Please confirm the required shaft type and motor mounting dimensions for your specific helicopter configuration before installation.

Features

• High-performance 4530-class brushless outrunner motor
• Designed for 700-800 class RC helicopters
• Optimized for high-performance 12S setups
• High-quality neodymium magnets rated up to 150°C
• High-temperature motor wire rated up to 300°C
• Precisely factory balanced
• High-performance sheet-metal stator
• High-quality NMB bearings – two upper and one lower bearing
• Efficiency up to approximately 93%
• Excellent torque and power output
• Precision CNC-machined components
• 1.5mm thick copper winding wire

Specifications

Technical Data
