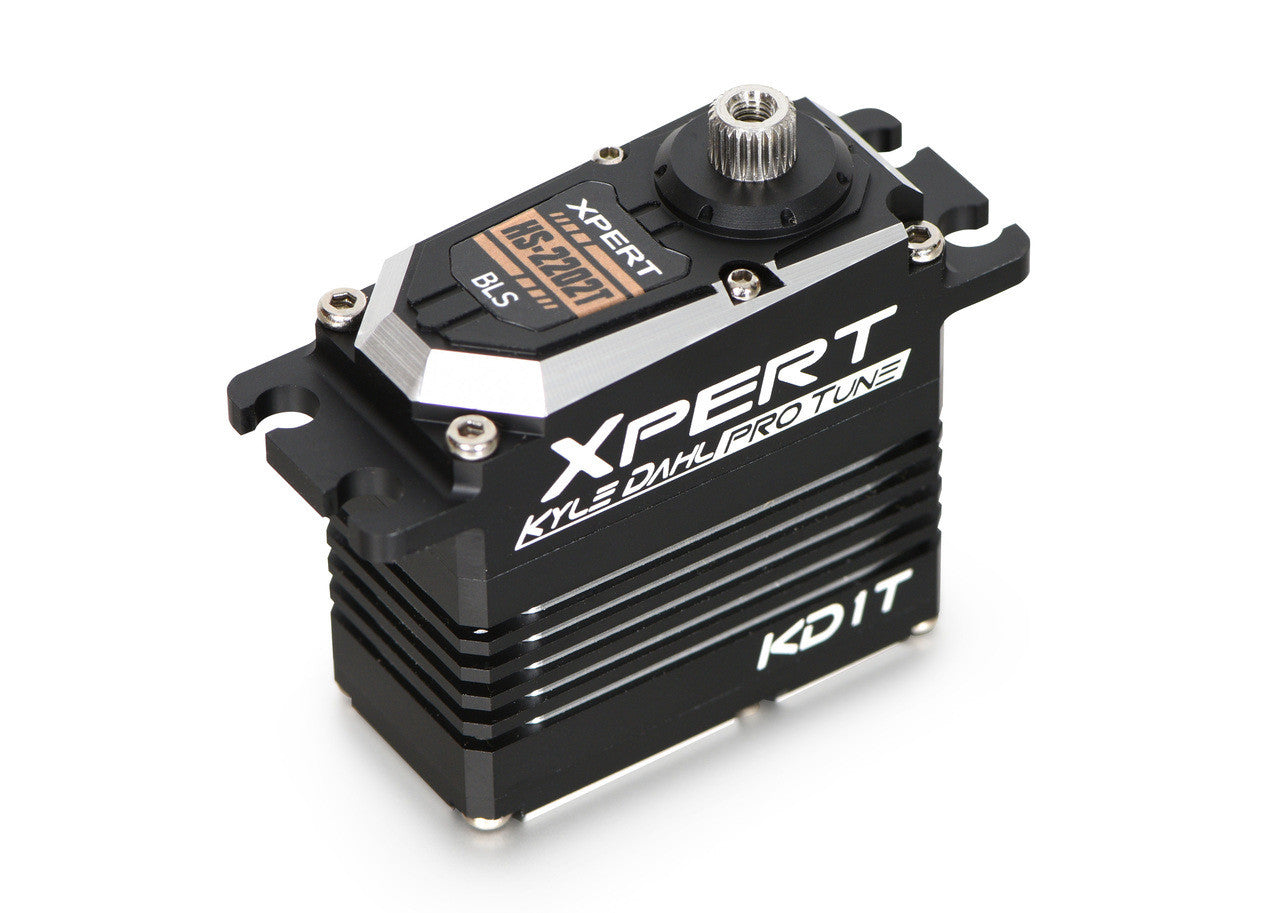

XPERT KD1T QUICK RELEASE FULL ALUMINIUM TAIL SERVO

This is Xpert KD1T Quick Release Tail Servo.

Product Feature and Specifications:

• Developed and tuned by World Champion Helicopter Master, Kyle Dahl.
• Global 3D 2017 Competition Winning Servo.
• Ultra High Responsive cyclic algorithm software.
• Quick release cable that allows easy and quick installation for all helicopters.
• Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
• 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
• All Aluminum case for the best thermal dissipation and durability.
• Strong Metal Gear
• Glitch-free
• Sophisticated error correction
• High-Speed, High-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Start sonorant
• Operating frequency up to 400Hz

--------------------------------------------------------------------------------------------------------------------------------------------

• Dimensions: 40x37.80x20 mm
• Weight: 72 g
• Speed:
• @6.0V: .056 sec/60
• @7.4V: .045 sec/60
• @8.4V: .040 sec/60
• Torque:
• @6.0V: 12.0 kg-cm (166.56 oz-in)
• @7.4V: 14.8 kg-cm (205.43 oz-in)
• @8.4V: 16.8 kg-cm (233.18 oz-in)
• Gear Set: XGS7162S
