XpertRC

SKU:XRC-GS­-3302T­-HV

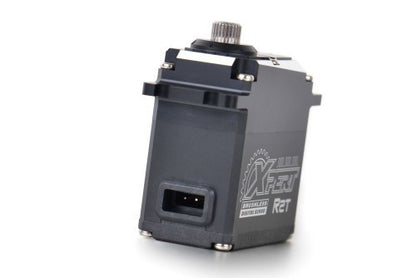

Xpert RC R2T Quick Release Tail Servo

Xpert RC R2T Quick Release Tail Servo

Regular price $213.99 CAD
Regular price Sale price $213.99 CAD
0% OFF Sold out
Shipping calculated at checkout.
View full details

Xpert has designed the most advanced servos currently on the market. They provide leading performance and reliability unmatched by other manufactures.

The R2 series has the same performance as the legendary R1 but at an incredible price. So now you no longer have to make any compromises in price/performance.

FEATURES

  • Quick release cable that allows easy and quick installation for all helicopters.
  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Light weight design
  • All Aluminum case for the best thermal dissipation and durability.
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Soft initialization
  • 760us narrow band
  • Operating frequency up to 800Hz

SPECIFICATIONS

Type Standard
Power Supply 6.0V~8.4V
Speed (sec/ 60°) @6.0V: .056 sec/60° @7.4V: .045 sec/60° @8.4V: .040 sec/60°
Torque (oz/in) @6.0V: 166.56 oz-in @7.4V: 205.43 oz-in @8.4V: 233.18 oz-in
Torque (kg/cm) @6.0V: 12.00 kg-cm @7.4V: 14.80 kg-cm @8.4V: 16.80 kg-cm
Dimensions 40x37.80x20 mm
Weight
Frequency 200/333 Hz
Range 50~400 Hz
Center Position 760 μs
Applications Helicopter Tail
Upper and Bottom Case XC-10
Hardware Parts Xpare-01
Gear Set XGS7162S

NOTE: Not compatible (will not function) with Bavarian Demon 3SX & Bavarian Demon 3X. Fully functional with latest "Axom" Bavarian Demon products.
