XT60 Modular Charge Board

XT60 Modular Charge Board

Regular price $12.99 CAD
Regular price Sale price $12.99 CAD
0% OFF Sold out
Shipping calculated at checkout.
View full details

XT60 Modular Charge Board



The latest revolution in parallel charging, our modular charge boards let you create the parallel board that you need. Mix and match any combination of main and balance connectors, and daisy-chain as many boards together as you need, with the added benefit of fuse protection for every connection.

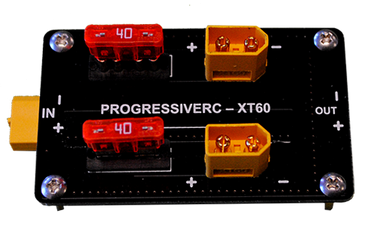

This XT60 Modular Charge Board gives you two XT60 connectors wired in parallel, and is ready to attach to any of our modular balance boards to create a fully customized parallel charging system. Connect it directly to your charger to charge two packs in parallel, or combine it with other modular boards to create one larger parallel board. With connections rated for charge rates up to 40A, you'll never go back to charging single batteries again.

To connect this board to your charger, you'll need a basic XT60 Charge Cable to go from the XT60 output to your charger's banana plugs. Or if you already have another modular board, just connect to the female XT60 on that board to daisy-chain them together - no matter how many you connect together, you'll always need just one hookup to your charger.

Not sure how fast your setup can charge? Click here to use our power calculator and find out!


Specifications
  • Charge Input Connectors: Female XT60
  • Charge Output Connector: Male XT60
  • Board Dimensions: 80 x 48 x 35mm
