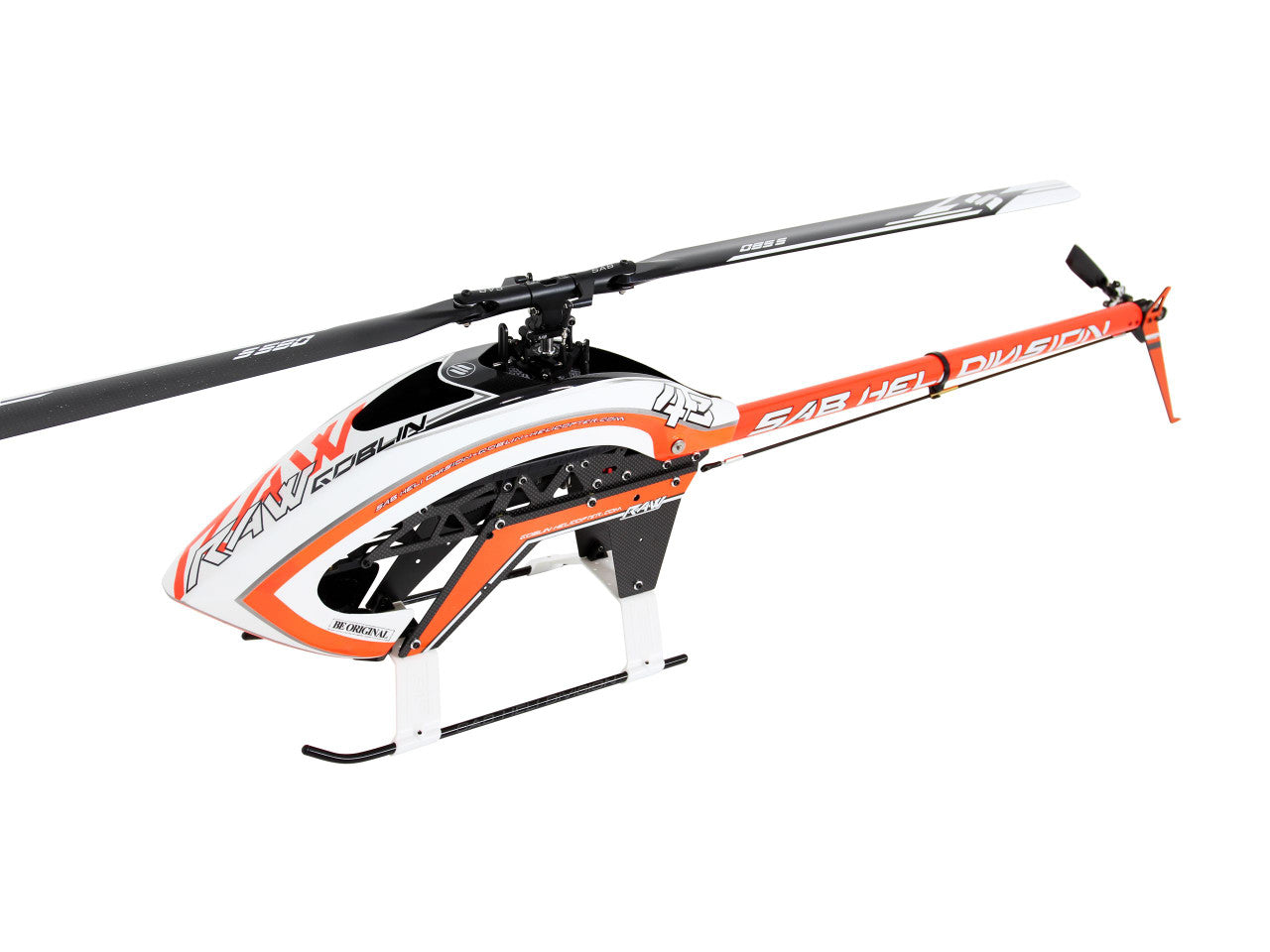

🪁 SAB Goblin RAW 580 White/Orange (SG585)

A compact powerhouse inspired by the legendary Kraken 580, the RAW 580 delivers top-tier performance and premium mechanics in a sleek and serviceable 600-class airframe.

🔧 Core Features

  • 🧩 Kraken 580 Drivetrain Module
    Uses the exact same powertrain module as the Kraken 580, enclosed in a precision-machined aluminum case for outstanding strength and durability.

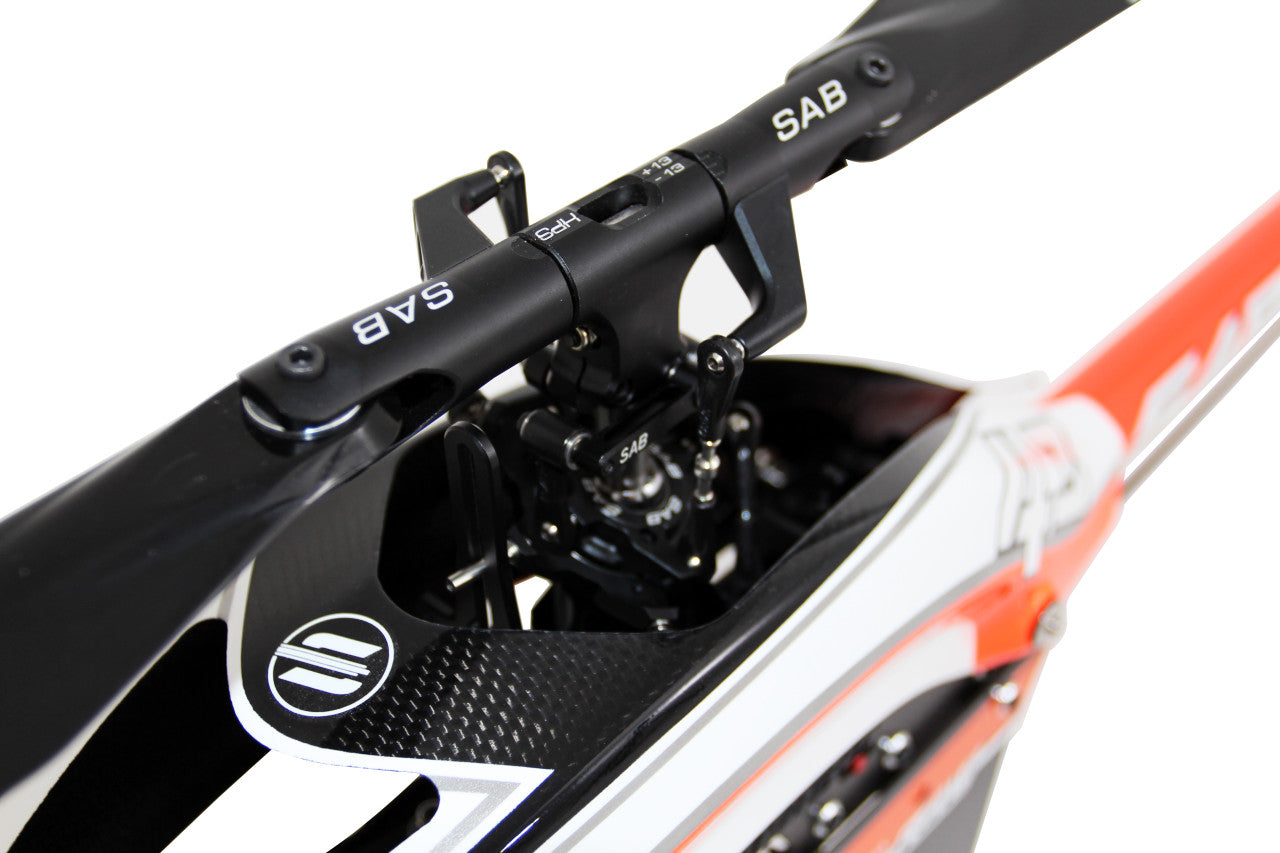

  • ⚙️ Rotor Head and Tail System
    Ultra-light 7075 aluminum alloy rotor head with high adjustability. Simplified tail system for easy setup and maintenance.
  • 🪶 30mm Aluminum Tail Boom
    Strong and lightweight for maximum rigidity and performance.
  • 🔁 Simple & Serviceable Layout
    Designed for easy maintenance—perfect for dedicated hobbyists and pro pilots.
  • 🔄 Blade Compatibility
    Supports main blades up to 600 mm (comes with 580 mm S-Line blades) and tail blades 95–105 mm (95 mm included).

📐 Technical Specifications

Component Specification
Airframe Weight 1,740 g (with 580 mm blades, no battery/electronics)
Main Blade Length 550 mm – 600 mm
Tail Blade Length 95 mm – 105 mm
Main Rotor Diameter 1,290 mm (with 580 mm blades)
Tail Rotor Diameter 260 mm (with 95 mm blades)
Cyclic Servos Mini servos (≥8 kg-cm torque). Mini servo mounts included; full-size mounts sold separately.
Tail Servo Standard size (40 mm)
Main Rotor Ratio 11.5 – 8.6:1 (22T included = 9.4:1)
Tail Rotor Ratio 5.3 – 4.9:1 (23T included = 4.9:1)
Recommended Motor 4025 series:
– 6S: 1000–1200 KV
– 12S: 500–600 KV
Minimum motor shaft: 26 mm (6 mm diameter)
ESC Recommendation 6S: 120–140 A
12S: 100–130 A
Battery Options 6S: 5000–5800 mAh
12S: 2600–3200 mAh

🎨 Design & Styling

  • White/Orange Canopy Finish
    High-contrast, ultra-visible design for excellent orientation during 3D flights.
  • SAB Precision Craftsmanship
    CNC-machined components and tight tolerances offer a premium build experience.

🧑✈️ Who It’s For

The RAW 580 is ideal for pilots looking for elite-level 3D performance and build quality in a smaller, easier-to-transport package. It’s a perfect fit for both competitive and enthusiast flyers.

✅ What's Included in the Kit

  • RAW 580 airframe
  • 580 mm main blades
  • 95 mm tail blades
  • Mini servo mounts (Standard servo mounts sold separately)
  • All required hardware

⚠️ Note: Electronics (motor, ESC, servos, FBL system, battery) are not included. Assembly required.
