SAB ILGOBLIN PRO 700 (ORANGE) - SG760 ***SALE EXCLUDED***

Introduction:

The highly anticipated flagship model from SAB is finally here, the ILGoblin PRO! This new heli represents a significant technological leap in RC helicopters with a complete redesign.

Main transmission:

• The main transmission is based on the Goblin gearbox, now further improved
• The main shaft diameter is now 15 mm for increased rigidity
• New helical gears for increased durability and strength
• New One-Way system, redesigned for optimal performance
• A fast disassembly servo mount that allows for easier and faster maintenance
• The new gearbox is lighter than previous models

Rotor head:

• New design that features new blade grip arms with an improved locking system
• Self-Centering Titanium washers that ensure automatic centering for greater precision
• Pivot shaft for the spindle allowing customization of rigidity and maximum movement

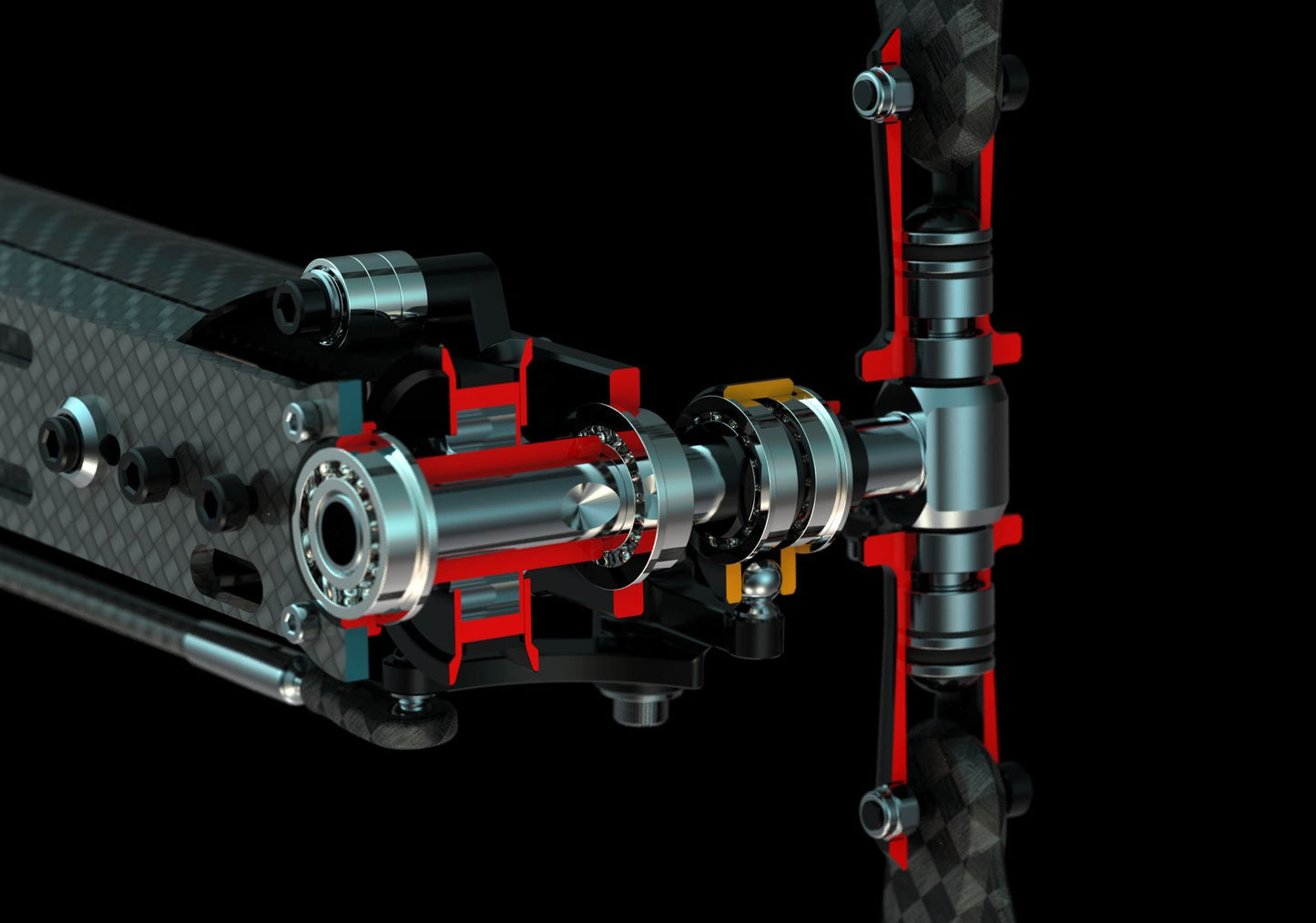

Tail rotor:

• 8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail
• The shaft and the hub are made from a single part in order to have maximum precision
• The tail pulley will be available in 3 different sizes to adjust the tail ratio according to personal preference

Tail boom:

• Made with high-pressure molding technology and its weight is only 180 gr.
• Includes a belt tensioning system with an indicator for optimal control

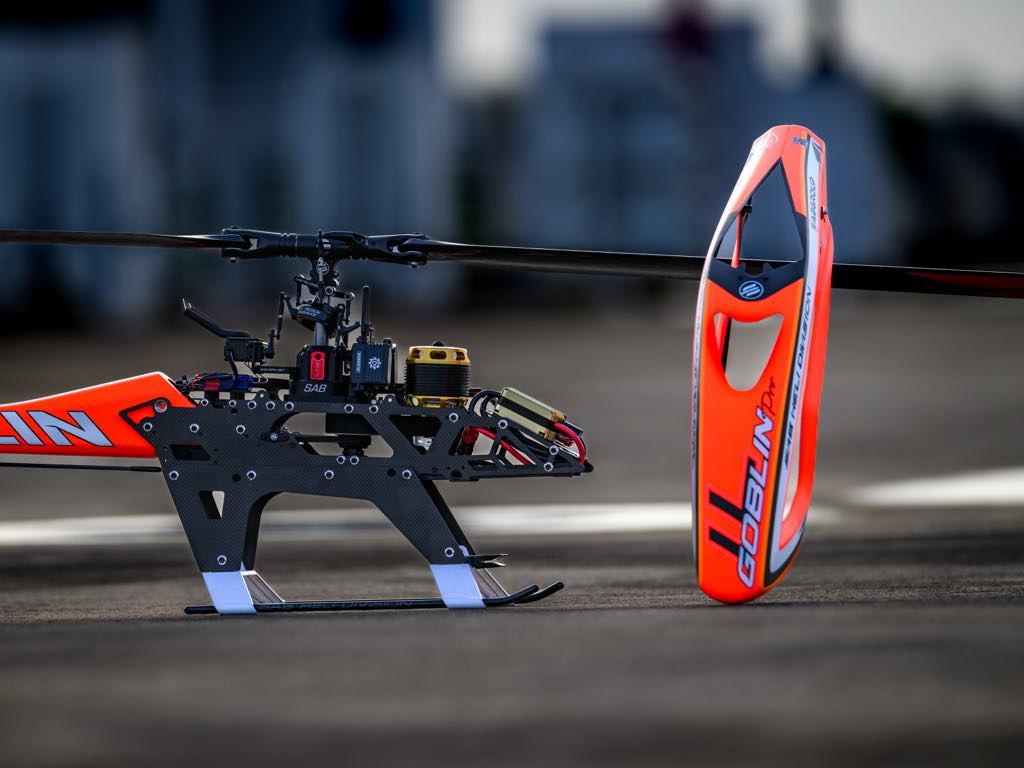

Canopy and blades:

•  Batteries can be installed from the rear with quick connectors eliminating the need to remove the canopy.
• The blades in the kit are the new S702, with new profile and dynamic performance, color-matched to the canopy
• The tail blades are S110 with a new design for improved performance.

Specs:

• Airframe weight: 2178 gr (no blades, no battery, no electronics)
• Main rotor diameter: 1576 mm (with 700 mm blades)
• Main blade length: 650 to 730mm
• Tail rotor diameter: 292 mm (with 110 mm tail blades)
• Tail blade length: 105 to 115 mm
• Cyclic Servos: Standard size 40mm
• Tail Servo: Standard size 40mm
• Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
• Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
• Main shaft 15 mm, Tail shaft 8 mm
• Molded carbon tail boom
• Motor 12S, 480/560 KV
• Battery room: 50x60x300 mm

Kit Includes:

• 21T motor pulley (other pulley sizes available)
• 2 battery trays with integrated connectors
• S702 Orange (700 mm main blades)
• S110 Orange (110 mm tail blades)
