SCORPION POWER
SKU:HK5_4026_1115_6x32

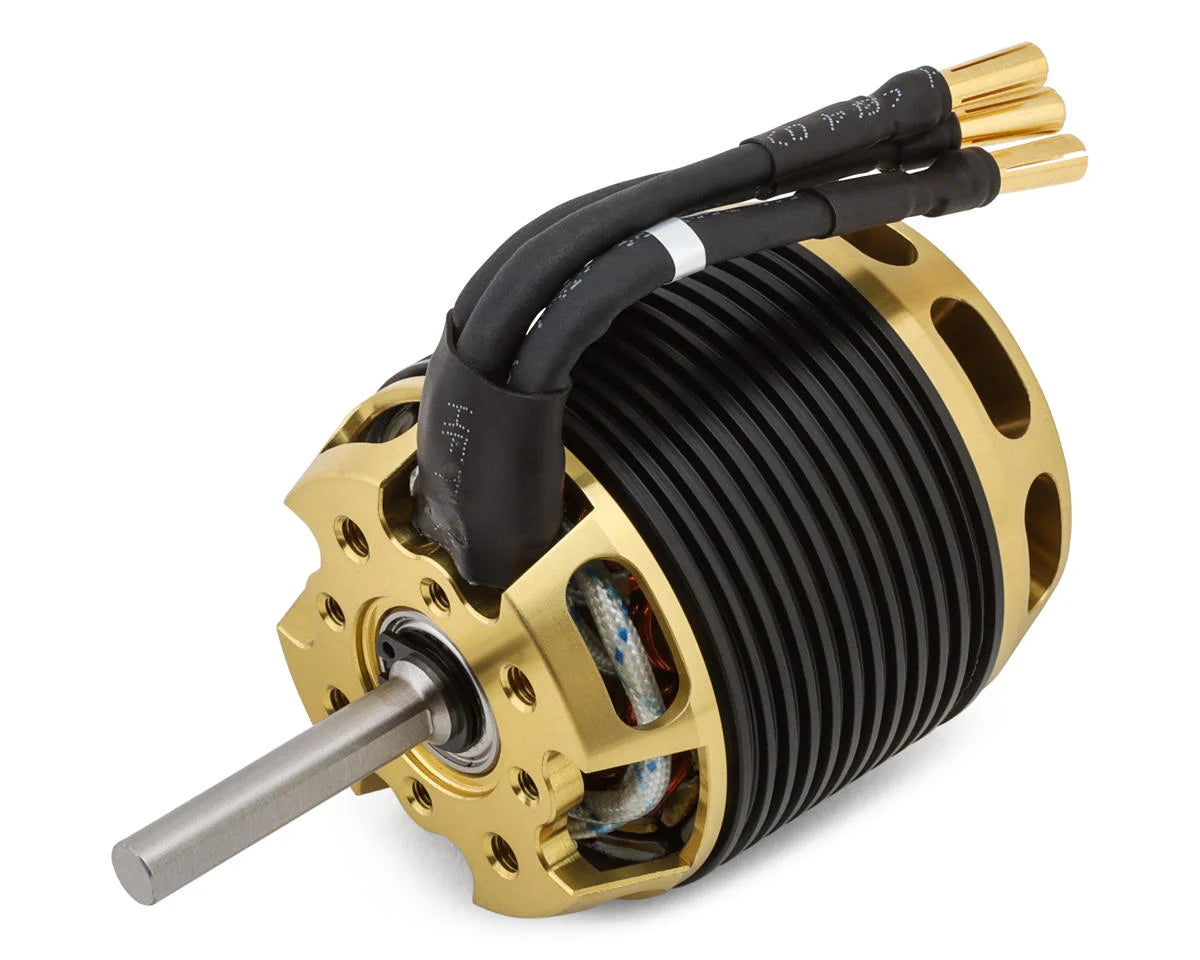

Scorpion HK5 4026 1115KV Brushless Motor (6x32mm shaft)
Scorpion HK5 4026 1115KV Brushless Motor (6x32mm shaft)
No se pudo cargar la disponibilidad de retiro
Introducing the Scorpion HK5-4026-1115KV — part of the fifth-generation HK5 Series, built on Scorpion’s award-winning HK motor platform and tuned for high power, high efficiency helicopter performance.
The HK5 Series is engineered to deliver exceptional torque-per-amp performance while maintaining cooler operating temperatures under heavy load. A redesigned internal fan working with Scorpion’s proven external centrifugal fan dramatically increases airflow through the motor, helping improve cooling and temperature stability during aggressive flying.
The HK5-4026-1115KV 6×32mm shaft version is designed for 550–580 class helicopters on 6S LiPo setups and other high-demand electric applications, delivering up to 4050W peak power.
Key Features
- Fifth-generation Scorpion HK5 Series high-performance helicopter motor
- Torque-per-amp focused design for powerful and efficient output
- Enhanced cooling with redesigned internal fan and external centrifugal fan
- Optimized for 550–580 size helicopters using 6S LiPo
- Up to 180A peak and 4050W peak power (2 seconds)
Specifications
| Motor Kv | 1115KV RPM/Volt |
| Weight | 367.7 g (12.97 oz) |
| Motor Body Dimensions | 49.5 mm × 57.30 mm (1.95" × 2.25") |

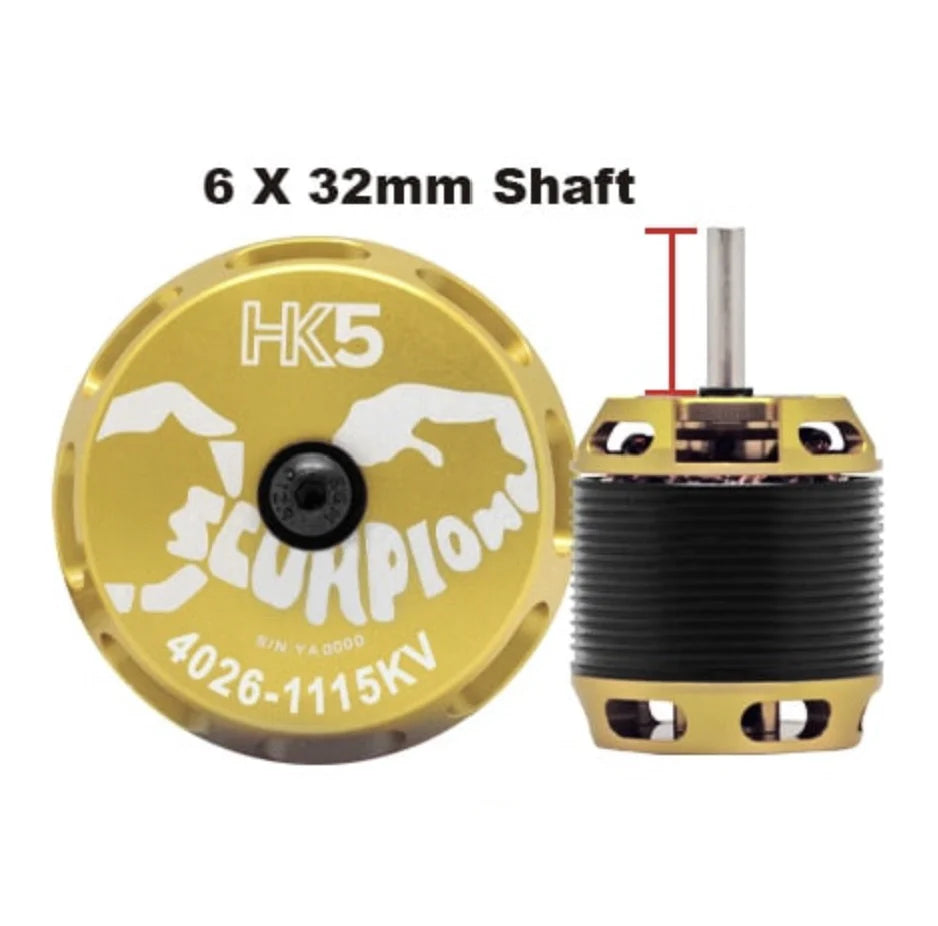

| External Shaft Dimensions | 6.0 mm × 32 mm |
| Continuous Current | 135 A |
| Continuous Power | 2775 W |
| Peak Current | 180 A (2 seconds) |
| Peak Power | 4050 W (2 seconds) |
| Max LiPo Cell* | 6S |
| Stator Diameter | 40 mm (1.57 in) |
| Stator Thickness | 26 mm (1.02 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 3T Delta |
| Motor Wire | 1.7 mm |
| *Higher cell count possible with appropriate gear ratio adjustment | |
Included in the Box
1 × HK5-4026 BLDC (Brushless Direct Current) Motor
3 × Female 4mm Connectors
3 × Heat Shrink
1 × Hardware / Accessory Pack
Weight Including Packaging
400 g
