SCORPION POWER
SKU:III_06_160

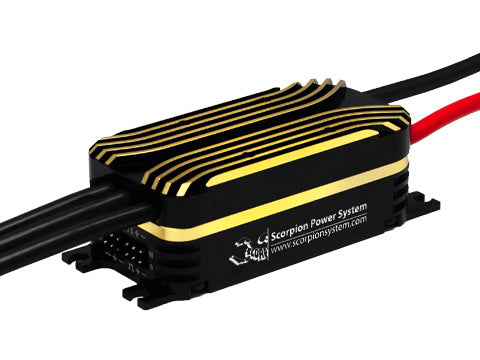

Scorpion Tribunus III 06-160A ESC SBEC
Scorpion Tribunus III 06-160A ESC SBEC
Precio habitual
$394.99 CAD
Precio habitual
Precio de oferta
$394.99 CAD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Specifications
| Max Continuous Current | 160 Amps |
| Peak Current | 200 Amps |
| Operating Voltage Range | 11-26.1 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 15 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| On Resistance | 0.37mOhms * 2 |
| ESC Body Size | 36.5 x 75.0 x 27.0 mm (1.44 x 2.95 x 1.06 in) |
| Mounting Tab Dimensions | 24.0 x 84.0mm ( 0.944 x 3.30 in) / M3 Bolt |
| Weight (Without Connectors) | 155g ( 5.47oz) |
| Drive frequency | 8kHz - 32kHz |
Included in the Box
1 x Tribunus III ESC
1 x 30mm Cooling Fan
2 x BEC Cables
1 x Mounting Hardware Pack
Weight including packaging
