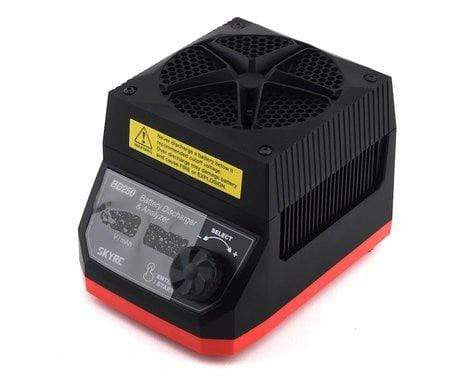

SKYRC BD250 Battery Discharger & Analyzer (250W / 35A) ***Excluded From Sale ***

SKYRC BD250 Battery Discharger & Analyzer is a high-power battery discharging solution designed to display real-time battery voltage, discharged capacity, and discharge current. It allows users to accurately test battery capacity, save time when preparing large-capacity packs for storage, and help bring out the best performance of batteries for competition use.

Key Features

• High-Power Discharge: Supports up to 250W / 35A continuous discharge, compatible with virtually all battery chemistries and sizes.
• Advanced Cooling System: Unibody construction with a large cooling fan and extruded aluminum heat sink efficiently removes heat, allowing sustained 250W discharge.
• Simple & Intuitive Operation: Rotary dial control combined with a clear digital LED display provides easy operation and real-time data visibility.
• Wide Voltage Compatibility: Voltage-oriented design supports batteries from 5.40V to 35.00V.
• PC Software Support: Connect to a PC to export battery voltage data at 30-second intervals (during the first six minutes) for further analysis.

Specifications

• Accepted Voltage Range: 5.40 – 35.00V
• Discharge Power: 250W
• Discharge Current Range: 0.01 – 35.00A
• Low Voltage Alert: < 5.2V
• High Voltage Alert: > 35V
• Sleep Mode Current: < 100µA
• Capacity Display Accuracy: ±3%
• Current Display Accuracy: 0.01–10.00A ±60mA / 10.00–35.00A ±3%
• Voltage Display Accuracy: 5.4–10V < 80mV / 10–20V < 120mV / 20–35V < 160mV

Physical Specifications

• Dimensions: 136.6 × 104.8 × 107 mm
• Weight: 879 g

Package Information

• Package Size: 170 × 130 × 130 mm
• Package Weight: 980 g

In the Box

• 1 × SKYRC BD250 Battery Discharger
• 1 × Discharge cable with XT60 connector
• 1 × Fuse
• 1 × Instruction manual
