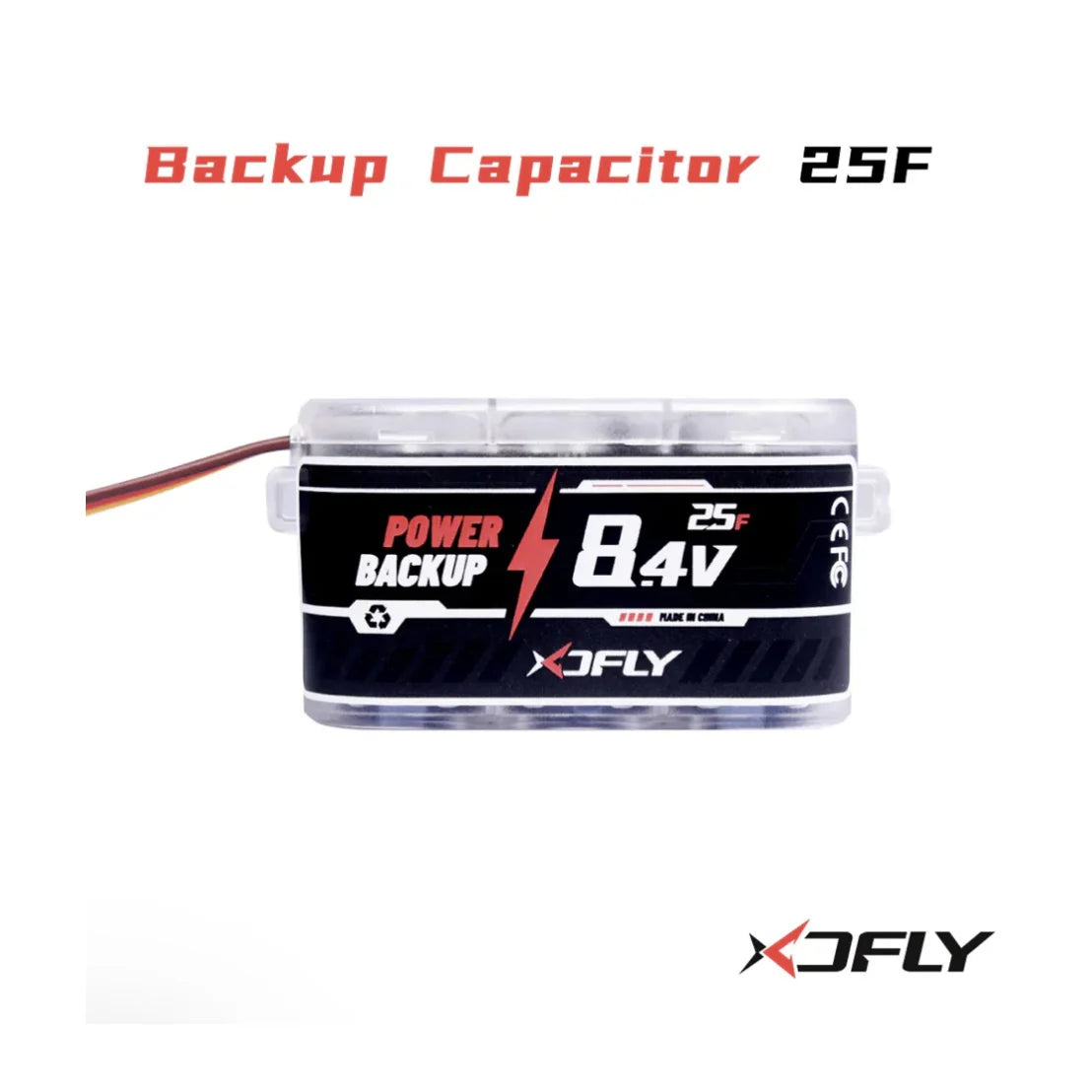

XDFly Backup Capacitor 25F 8.4V (Max 9.0V)

XDFly Backup Capacitor 25F 8.4V (Max 9.0V)

$48.99 CAD
$48.99 CAD
0% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
Ver todos los detalles

XDFly Backup Capacitor 25F 8.4V (9.0V Max)

The XDFly 25F Backup Capacitor adds a safety buffer and voltage stabilization to high-load RC setups. Sized to provide emergency control time (e.g., hard-stick inputs during an auto) in case of BEC failure or LiPo disconnect, it also smooths transient voltage dips under peak current, helping protect receivers, FBL units, and servos.

Key Features

  • Emergency reserve: provides extra control time to complete an auto if power is interrupted.
  • Voltage buffering: reduces brownouts and keeps electronics stable during high current spikes.
  • 25A capability: designed to support demanding helicopter and high-load aircraft systems.
  • Compact form factor: easy to mount near ESC/FBL inside most frames.
  • Simple integration: wire in parallel with the BEC/receiver bus per your system guidelines.

Specifications

Model Backup Capacitor 25F (8.4V, 9.0V Max)
Input Voltage Range 6–8.4 V (Max 9.0 V)
Continuous Output Current 25 A
Dimensions (L × W × H) 60 × 36 × 23 mm
Weight 41 g
Note: For best results, mount close to the receiver/FBL power bus. Always follow your FBL/receiver manufacturer’s wiring recommendations.
