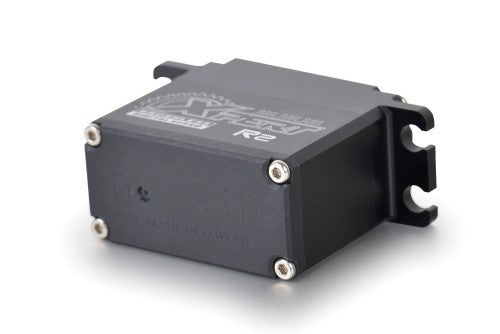

Xpert RC R2T Quick Release Tail Servo
Xpert RC R2T Quick Release Tail Servo
Precio habitual
$225.99 CAD
Precio habitual
Precio de oferta
$225.99 CAD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Xpert has designed the most advanced servos currently on the market. They provide leading performance and reliability unmatched by other manufactures.
The R2 series has the same performance as the legendary R1 but at an incredible price. So now you no longer have to make any compromises in price/performance.
FEATURES
- Quick release cable that allows easy and quick installation for all helicopters.
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- All Aluminum case for the best thermal dissipation and durability.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Soft initialization
- 760us narrow band
- Operating frequency up to 800Hz
SPECIFICATIONS
| Type | Standard |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .056 sec/60° @7.4V: .045 sec/60° @8.4V: .040 sec/60° |
| Torque (oz/in) | @6.0V: 166.56 oz-in @7.4V: 205.43 oz-in @8.4V: 233.18 oz-in |
| Torque (kg/cm) | @6.0V: 12.00 kg-cm @7.4V: 14.80 kg-cm @8.4V: 16.80 kg-cm |
| Dimensions | 40x37.80x20 mm |
| Weight | |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 760 μs |
| Applications | Helicopter Tail |
| Upper and Bottom Case | XC-10 |
| Hardware Parts | Xpare-01 |
| Gear Set | XGS7162S |
NOTE: Not compatible (will not function) with Bavarian Demon 3SX & Bavarian Demon 3X. Fully functional with latest "Axom" Bavarian Demon products.
